    Highway Guardrail Roll Forming Machine High Yield Strength Galvanized W Beam

    Highway Guardrail Roll Forming Line PLC Electric Control 18.5KW High Speed

    Equipment overview:
    The device is a will of galvanized steel after uncoiling, leveling, punching and forming, cut to length of various highway guardrail profiles in automatic production line.
    Performance characteristics:
    1 The scientific and rational structure of the cold roll forming process is scientific and reasonable, which is suitable for the wide range of the hardness and hardness of the galvanized steel strip, and the zinc layer is not easy to be damaged during the rolling process of the galvanized steel strip;
    2 Steel strip punching, and then continuous roll bending, can be in accordance with the requirements of punching, and to ensure that the size of precision; and high productivity;
    3 Hydraulic stop punching, cold bending forming, hydraulic stop cutting;
    4 The operator needs one person.

    Working Flowing:

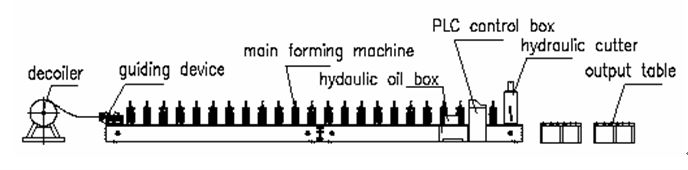

    Decoiler--- Feeding---- Punching ---- Roll Forming ---- Cutting ---- Run out table Highway guardrail barrier roll forming machine

    Technical parameter:

    No.ItemUnitParameter
    1MaterialGalvanized sheet, strip, steel, etc
    2Thickness of material sheetmm4.0
    3Production speedm/min0-8
    4Material of rollerGCr15 quenching treatment
    5Drive typeGearbox driven
    6Main motor powerKW55/75
    7Electric control systemPLC


    RFQ:
    1) Q: What is the Warranty Machine ?
    A: For our roll forming machine , we have 1 year warranty. If any quality problems in this period ,we will take on the shipping cost and replacement.

    2) Q: Do you have after sales support?

    A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

    3) Q: How do your machines compare with other big companies in this market?

    A: We are up to date with the latest technology and improve our machines accordingl


    4) Q: How does your factory do regarding quality control?
    A: Quality is priority. We always attach great importance to quality control from the very

    beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

    Profile Drawing
    18.5Kw Hydraulic Punching Guardrail Roll Forming Machine PLC Electric Control
