    High Strength Floor Decking Forming Machine Easy Operation Low Maintenance Cost

    Ask Lasest Price
    Model Number : JK 76-320-960
    Certification : ce
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 30 days after received the deposit
    • Product Details
    • Company Profile

    High Strength Floor Decking Forming Machine Easy Operation Low Maintenance Cost

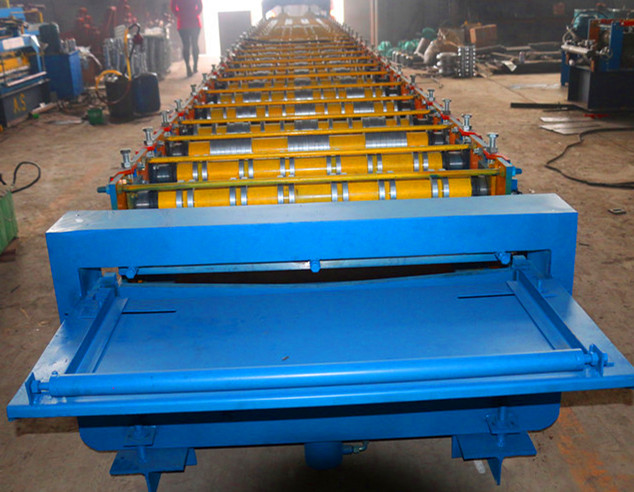

    Decking Floor Production Roll Forming Line For Building Material


    1. Main features of floor decking roll forming machine


    The advantages of floor decking machine are as follows:

    1. Low cost, light weight but high strength, short building period, and re-cycle use

    2. Save material , no waste.

    3. Easy operation, low maintenance cost

    Processing material: colored steel plate, galvanized plate, or aluminum plate

    Material thickness: 0.8---1.2mm


    Material hardness: 195 mpa---350 mpa


    Material width: 1250mm


    Formed width: 914mm


    Wavelength: 305 mm


    Step height: 75mm


    Step length:150mm---380mm(adjustable)


    Forming speed: 8-10m/min


    Uncoiler

    Usage:It is used to support the steel coil and uncoil it in a turnable way.

    Passive uncoil pulled by roll forming system


    Loading capacity:5T


    Uncoiling width:1250mm


    Inner diameter: 450-550mm


    Entry Beach


    Usage:Put the raw material(steel plate) through the beach to manufacture and process,

    it can guarantee that the products are neat, parallel and everything is uniformity.

    Please refer to the equipment regulation to know the function of locate angle iron.

    Length of the main part: about 1800*1450*1500mm


    Weight of main part: 8.5T


    Voltage: 380V/50HZ 3Phase


    Roller fixer: middle plate


    Frame: 350H steel


    Drive mode: chain


    Material of rollers: 45#steel, surface hard chromium plating.


    Material of shafts: 45#steel


    Diameter of shafts: φ 90mm


    Number of rollers: 28 rollers


    Main power: 2*11kw


    Material of mould: Cr12 quenched

    Power supply:hydraulic power

    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

    Material of blades: Cr12 quenched

    Power supply : hydraulic power

    Components:It contains one set of blade, one hydraulic tank and one cutter machine.

    Power:5.5kw


    Our Services

    Warranty

    1). One year, and we will provide the technical support for the whole life.

    2).Training: the buyer should charge of visa, return ticket, food and accommodation

    overseas and USD50/person/day for salary.

    3). Need one technicians

    4).Training time: one week (contains the time of installation and adjustment

    Company Information

    Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the

    world, such as Asia, Africa, Europe,South America, and Australia and so on.

    FAQ

    1. You are trade company or factory?

    ----- We are trade company but we also have own factories. Building trade company is just for exporting

    various types of cold roll forming machines.

    2. Why your price is higher than others?

    ---- As we persist on that each factory should put quality at the first place. We spend time and

    money on developing how to make machines much more automatic, accurate and high quality.

    We can make sure that our machine could use more than 20 years without any problem. We can

    provide 2 years free quality assurance.

    3. How long the machine could be made?

    ---- Normally speaking, welded pipe making machine could be made without 45 working days. If

    you need machines in a hurry, we can make it for you less than a month.

    4. How to visit your company?

    ---

    -a. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then

    we can pick up you.

    b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

    5. Does one machine can only produce one style panel profile?

    ---

    -Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of

    panels.
