    C U Channel Light Keel Roll Forming Machine 10 - 15 M / Min Productivity

    Ask Lasest Price
    Model Number : light steel keel
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 30 sets per month
    Delivery Time : 45 days after receipt of buyer's deposit
    • Product Details
    • Company Profile

    C U Channel Light Keel Roll Forming Machine 10 - 15 M / Min Productivity

    C U Channel Keel Cold Forming Machine For Building Roof Tile 8-15M/Min


    Specifications:


    Work Flows :


    uncoiling—feeding the material into machine—roll forming—mesuring length—hydraulic cutting—receiving table


    No
    1Dimensions (L*W*H)3800*750*900mm
    2Total power

    Motor power-5.5kw

    Hydraulic power-4kw

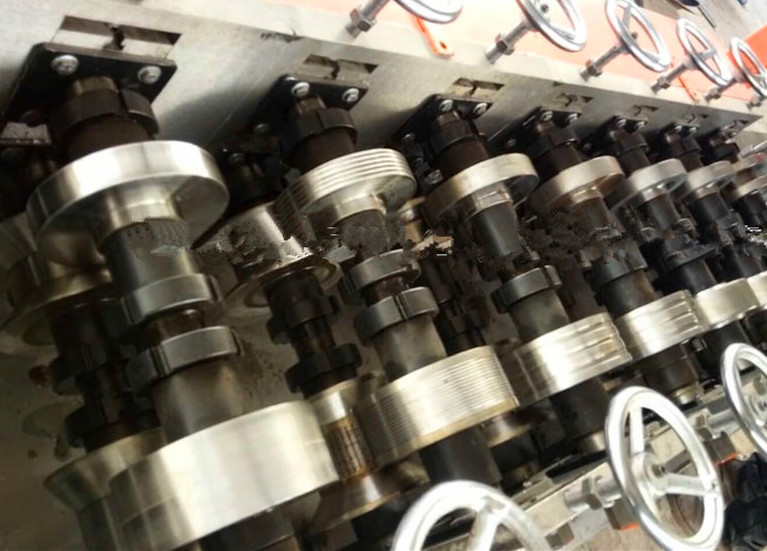

    3Rows of rollers10 rows
    4Productivity10-15m/min
    5Diameter of shaft60mm
    6Voltage380V 50Hz 3Phases, can design as your need
    7Weight2.3t
    8Control systemPLC control/cnc
    9Material of the rollers45# steel plated with chrome
    10Material of the cutting bladeCr12 with quenching treatment
    11Material of the shafts45# steel
    12Cutting systemMould cutting

    PS: The above are for reference; customized design is provided.



    Packaging & Shipping

    Packaging Details:

    Main machine is nude, the computer control box is packed

    with wooden frame.

    Main machine is nude in the container, the computer

    control box is packed with wooden packaging.

    Delivery Detail:

    25 days


    Company Information

    Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
    We specialized in manufacturing Color steel roll forming machinery, C U M Z purlin roll forming machine,Glazed tile roll forming machine,floor deck roll forming machine, shutter door roll forming machine, highway guardrail roll forming machine, downspout machine, welding pipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.
