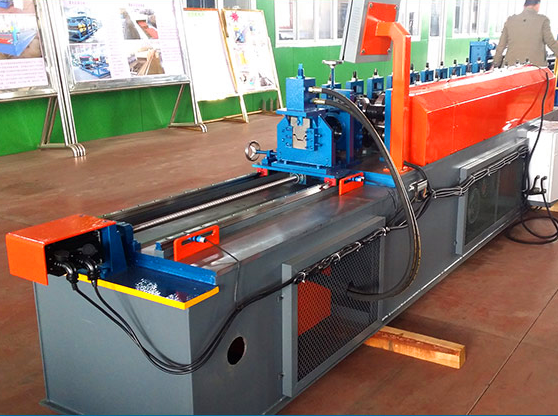

PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile

    Buy cheap PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile from wholesalers

    Buy cheap PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile from wholesalers
    • Buy cheap PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile from wholesalers
    • Buy cheap PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile from wholesalers

    PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile

    Ask Lasest Price
    Model Number : light steel keel
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 30 sets per month
    Delivery Time : 45 days after receipt of buyer's deposit
    • Product Details
    • Company Profile

    PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile

    PLC Control System Light Keel Roll Forming Machine For Colored Glaze Steel Tile


    Equipment components:
    Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
    Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

    Main parameters

    1. Echnical parameters

    Name
    Botou light steel keel Metal studs track house structure roll forming machine
    Configurations
    Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
    Control System
    PLC Inverter Encoder Touch Screen
    Main Frame
    400mm H-Beam
    Total Power
    7.5 kw
    Power Supply
    380V, 3-Phase,50Hz
    Forming Speed
    12-24m/min
    Roll Station
    14 stands
    Decoiler capacity
    3.5 tons
    Roller Diameter
    80mm
    Effective Width
    80-300mm
    Feeding Thickness
    0.3-1.2mm
    Backboard Thickness
    20mm
    Cutter Standard
    GCr12
    Roller Standard
    Gcr15#
    Overall Size
    About 8500×1000×1400mm
    Total Weight
    About 3.2 T
    Custom
    According to customer's requirements
    Our Company

    Established in 1998. Kingter has accumulated rich experience in producting tile roll forming machine. Near 20 years' development has made Kexinda the most powerful roll forming equipment supplier in Northern China. We are now staffed by over 200 people.The two production regions in Kexinda span an area of 50 thousand m2. We have established 5 large workshops, including plants for spare parts machining, machine welding, assembly, andsurface treatment.
