    1250 MM Width Corrugated Roll Forming Machine / Roofing Sheet Making Machine Low Noise

    Ask Lasest Price
    Model Number : 800
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 SETS PER MONTH
    Delivery Time : Shipped in 30 days after payment
    • Product Details
    • Company Profile

    1250 MM Width Corrugated Roll Forming Machine / Roofing Sheet Making Machine Low Noise

    1250MM Width Roofing Corrugated Sheet Roll Forming Machine Low Noise

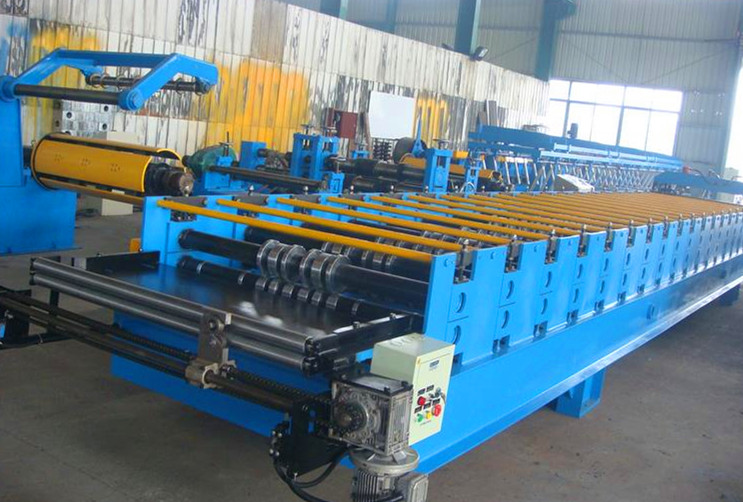

    Detailed Images of corrugated roller machine

    decoiler

    drive: manual

    Inner Diameter: 450-550mm

    Outer Diameter: max 1600mm

    Max Coil width: 1250mm

    Carrying capacity: 5 T


    Main Forming Machine

    Forming steps : 13 rollers
    Shaft diameter: 80mm
    roller material: 45# steel with tempering
    shaft material: 40Cr steel
    Transport : By chain
    Type of cutting and punching: Hydraulic
    Cutting tolerance: ±1mm
    Cutter quantity: 2 set

    Shearing machine

    Material of blades: Gcr12 quenched
    Power supply : hydraulic power
    Frame : Pillar style with rack & pinion system
    Stroke switch : non-contact photoelectric switch

    hydraulic station

    Hydraulic oil: 46#
    Hydraulic power: 3kw
    Cutting length : As required
    feasure: no distorting or wasting. High level safety factor

    control device


    PLC Control : Speed regulation control cabinet
    language: As required
    Touch screen: Delta
    Function: Automatic length and quantity measurement

    Packing & Delivery
    Packaging
    Packaging Details
    1.One 20ft or 40ft container for loading one set machine with manual decoiler.
    2.The whole wiped anti rust oil ,PLC controller covered by foam film.
    3.Spare parts and some small parts packed in plastic tooling box.
    4.All components of Deck Roll Forming machine fixed by steel wire.
    Our Service

    training
    a. send you user manual and videos.
    b. If buyer needs our technicians to go to your factory, the buyer need pay the technician USD80/day for salary .

    c. There need one technician. for one week.

    After-Sales Service
    a. One year guarantee for whole machine.
    b. 24 hours technical support by email or calling
    c. If there is any problem found in ourmachine, we will repair it for free in one year.
