High Efficiency Ridge Cap Roll Forming Machine 20Mpa 0.05mm Cr - Plating

machine specification

NO.	Item	Specification
1	Processing material
2	Processing thickness	0.2-0.8mm
3.	Coil width	500mm
4.	cover width	312mm
5.	Material of main frame	300H steel
6.	Diameter of Soild shaft	70mm, high grade 45# steel
7.	Roller	Quenched and tempered treatment, hard chrome coated 0.05-0.07mm
8.	Thickness of middle plate	16mm
9.	Forming station	16 station
10.	Transmission	By chain(1.0 inch) link bearing model 6210
11	Power of main motor	5.5kw with Cycloidal reducer
12	Power of pump station	4kw
13	Forming speed	about 8-10m/min
14	Hydraulic cutting	Controlled by PLC
15	PLC	DELTA(TAIWAN)/Mitsubishi
16	Material of razor blades	Cr 12, quenching 58-62℃
17	Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).
18	Switch	CHNT
19	Transducer	SAJ

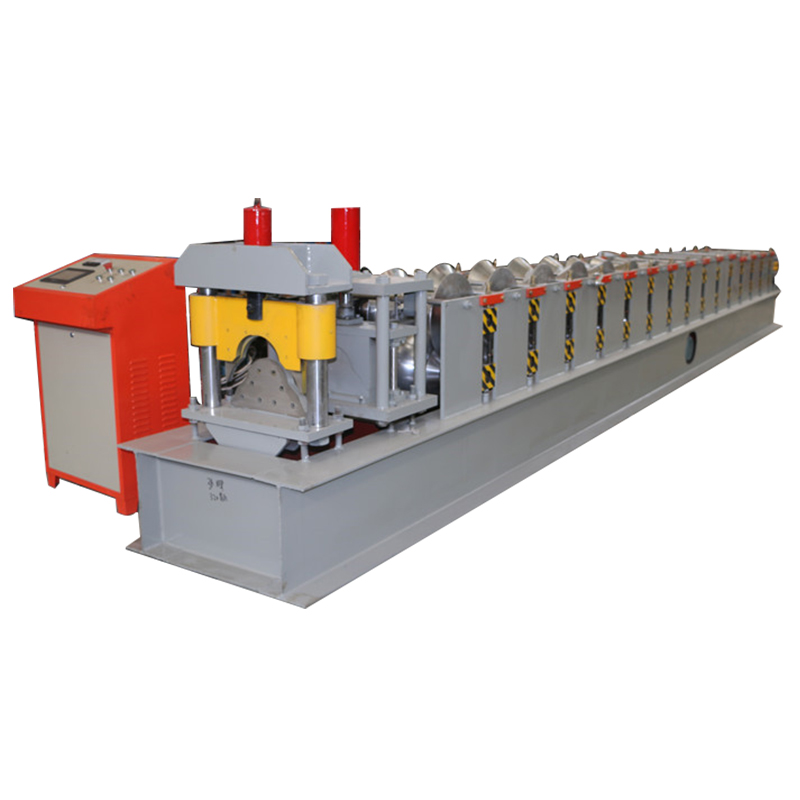

Machine picture

Packaging Details:	Main machine is nude, the computer control box is packed with wooden frame.
	Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail:	20 days
