    Automatic Galvanized Ridge Cap Tile Forming Machine / Roofing Sheet Roll Forming Machine

    Ask Lasest Price
    Model Number : 312
    Certification : CE
    Price : negotiate
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : within 30 days after receiving deposit
    • Product Details
    • Company Profile

    Automatic Galvanized Ridge Cap Tile Forming Machine / Roofing Sheet Roll Forming Machine

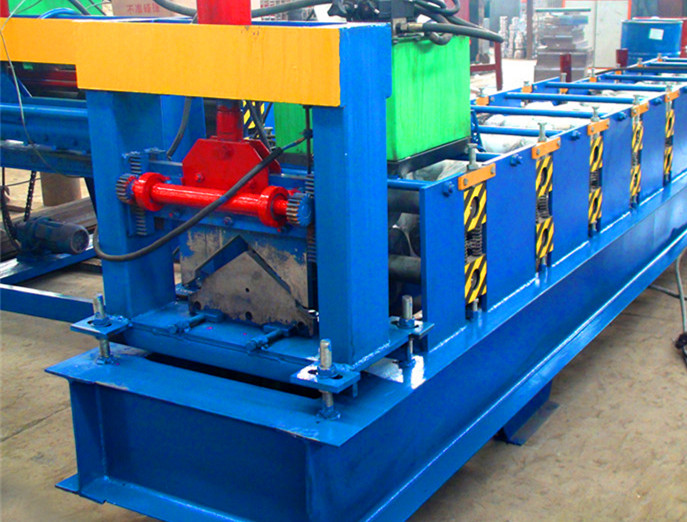

    312 Automatic Galvanized Ridge cap zinc roofing sheet roll Forming Machine


    Work flow

    Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table

    high quality 312 cap ridge roll forming machines

    Machine parameter


    Article No.Item NameSpecification
    1Width of feeding materialas ur need
    2Thickness of feeding material0.3-0.8 mm coil sheet
    3Roller station8-15 stations
    4Shaft Diameter65-85 mm
    5Productivity3-5 m/min
    6Rollers' material45# steel
    7Shaft material45# steel
    8Weight3.5-5 ton
    9length4.5-6 m
    10Voltage380V 50Hz 3phases
    11ControlPLC
    12Decoiler5 tons
    13Motor5.5 kw
    14Driving wayChain transmission
    15Chain size0.6-2 inch
    16Cutting systemHydraulic cutter
    Company Information

    Cangzhou Kingter roll forming machinery CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1996. We have 4 factories working in Beijing, Tianjin and Hebei province. Here are more than 400 workers to serve you. We are ready to provide quality products and excellent service to our customers with our company motto "Quality first and nothing but credit".


    Our Services

    1. Free technical support and free accessories supply.

    2. Engineer available to service machinery overseas.

    3. One year warranty is provided.

    4. Long life technical guidance for free.

    5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
