    2 ,3 Wave W Beam Highway Guardrail Roll Forming Machinery Prodcution Line

    Ask Lasest Price
    Model Number : highway Guardrail
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 30 days after your pre-deposit
    • Product Details
    • Company Profile

    2 ,3 Wave W Beam Highway Guardrail Roll Forming Machinery Prodcution Line

    2 ,3 Wave W Beam Highway Guardrail Roll Forming Machinery Prodcution Line


    guardrail machine Process flow:
    Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
    →Products receiving

    Machine Component

    De-coiler1 set
    Leveling device1 set
    Forming machine1 set
    punching device1 set
    Cutting device1 set
    PLC control box1 set
    Hydraulic pump station1 set
    Production support table1 se


    Decoiler

    TypeManual type(standard)Hydraulic type(option)
    Width600mm800mm
    Capacity5000kgs5000kgs-15000kgs
    Inner diameter450-550mm450-550mm
    Outter dimater1500mm1800mm


    roll forming machine
    (1) Rolled Material: Cold Rolled Steel Sheet
    (2) Material Thickness: 2-3 mm
    (3) Rollers: 18 Groups
    (4) Material for Rollers: GCr15 steel after treating
    (5) Material for shaft: GCr15 steel after treating
    (6) Hardness for Heat Treatment: HRC55 – 60
    (7) Diameter of shaft: 80mm
    (8) Frame panel thickness: 20mm
    (9) Bottom frame: 36# H-section steel
    (10) Motor Power: 15 kw
    (11) Driven type: 2.0'' chain

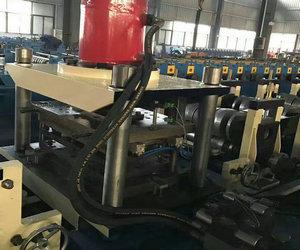

    Punching device

    ItemParameter detail
    Photo2 Wave W Beam Highway Guardrail Roll Forming Machine Prodcution Line2 Wave W Beam Highway Guardrail Roll Forming Machine Prodcution Line
    Frame processingthe whole levelling surface is made by drilling machine
    Mould materialCr12mov
    Mould processingwire eletrode-cutting for the mould shape, it will save pressure
    Hole sizeAccording to your request
    Hole numberAccording to your request
    Pressure20Mpa


    Cutting device

    TypeBearing Type cutting
    2 Wave W Beam Highway Guardrail Roll Forming Machine Prodcution Line
    Blade materialCr12mov quenching and grinding
    Frame processingthe whole bottom frame is grinding for high-precision
    2 Wave W Beam Highway Guardrail Roll Forming Machine Prodcution Line
    Blade processingwire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
    WorkingHydraulic type


    Stacker

    TypeManual
    2 Wave W Beam Highway Guardrail Roll Forming Machine Prodcution Line
    Auto(option)
    Length2pieces, length is adjustableaccording to your requirement

    PLC

    Main itemParameter detail
    PLCDelta(standard) or according to your request
    InverterChina brand(standard) or according to your request
    Touch screenMcgs(standard) or according to your request
    EncoderChina brand(standard) or according to your request
    Voltage/HZ/Phase380v/50-60hz/3phase

    Hydraulic pump

    Main ItemParameter detail
    Motor3kw China brand or according to your request
    PumpChina brand or according to your request
    Solenoid valveChina brand or according to your request
    Cooling systemCooling fan

    Our Service

    1. 1 year and life-long maintenance;
    2. Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;
    3. Installation Days:about 5-7 days

    Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
