    Aluminium Water Downspout Roll Forming Machine / Pipe Making Machine

    Ask Lasest Price
    Model Number : JK-215
    Certification : CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

    Aluminium Water Downspout Roll Forming Machine / Pipe Making Machine

    Aluminium Water Downspout Roll Forming Machine With 5.5-20KW

    Technical Data


    Machine specification: forming thickness:0.5-1.2mm
    Forming speed: 10-15M/min (EXCLUDING CUTTING STOP TIME)
    Forming roller: about 20 stations
    Main motor power: 7.5KW
    Roller material: 45# forged steel, surface coated with chrome
    Main shaft material: 45# steel
    Main axis dia:50mm
    Hydraulic cutting pressure: 10-12Mpa
    Cutting method: hydraulic powered, cutting after roll forming.
    Cutting blade material: Cr12 quenching treatment
    Hydraulic system pressure:12Mpa
    Control system: PLC control system. Brand of Japanese Panasonic; the frequency changer is the Japanese Panasonic brand


    Machine Component

    Commodity & DescriptionQuantity
    3T manual uncoiler1 set
    Feeding guiding1 set
    Roll forming machine1 set
    Control system1 set
    Fly saw cutting1 set
    Punching press machine1 set
    Water cooling system1 set
    Our tables2 set

    Working flow

    Uncoiling – Feed Guiding–Roll forming ––fly saw cutting – Run-out table


    Aluminium Water Downspout Roll Forming Machine / Pipe Making Machine

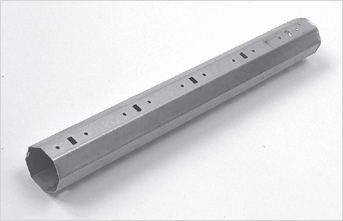

    Profile of product


    Aluminium Water Downspout Roll Forming Machine / Pipe Making Machine



    Company information


    Cangzhou Kingter Roll Forming Machine Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before,

    it always designs and produces various type profile of roll forming machine.

    The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine,

    the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine
