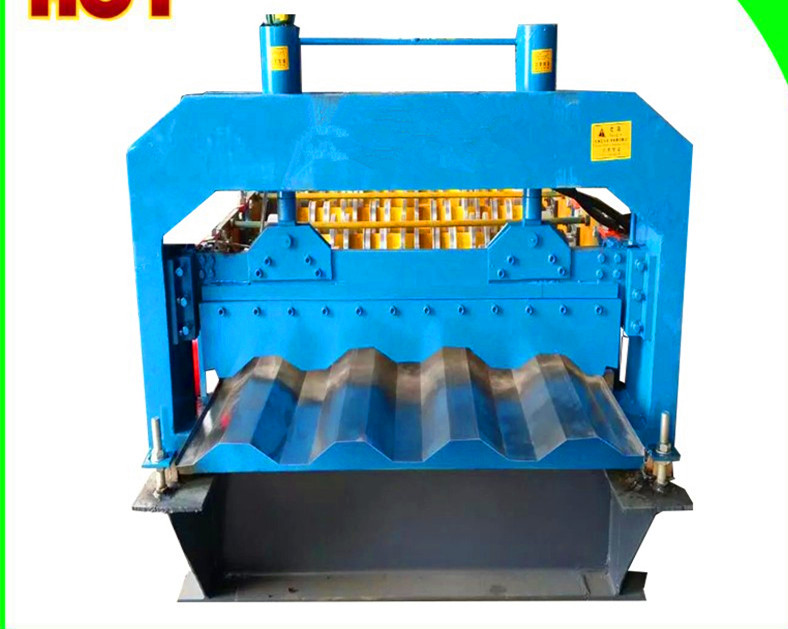

Freight Car Panel / Truck Panel Roll Forming Machine For Lorry
Plate
Main Features
1) Automatic roll forming machine production line, easy in
operation and maintenance.
2) Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
3) Can customize the models as clients' profile drawings or clear
requirements.
4) We provide overseas debugging and operation after clients order
our forming machines.
5) The forming machine has PLC control system, with Delta or
Siemens brand, easy used and durable.
Model:576 Car Panel
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine
Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station
,PLC Control, Supporter Table. |
| Control System | PLC Delta Inverter |
| Main Frame | 300mm H-Beam |
| Main Power | 11 kw |
| Pump Power | 15 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 10m/min |
| Roll Station | 16 stands |
| Roller Diameter | 80mm |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 576 mm |
| Feeding Thickness | 0.8-1.4mm |
| Feeding Width | 1000mm |
| Backboard Thickness | 20mm |
| Chain Size | 52mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall S | 9000×1300×1500mm |
| Total Weight | 8t |
All technical parameters can be changed,according to user s need
Packing And Delivery;
| Packaging |
| Size | 7500mm * 1600mm * 1600mm |
| Weight | 6.5T |
Packaging Details | The normal package is covered with plastic film or pack it
according to customers special request. |
| Delivery |
Delivery Details | We have many years' experience in loading the roll forming machine
into the container, so we can take advantage of as much as space of
the container to save the freight cost. |
Company Information
1. Cangzhou Kingter Roll Forming Machine Co.,ltd is located in "
The Town of Casting Molds", enjoys convenient transportations, Di
Kou Zhang Village, Nancang Road, Botou City, Hebei Province, China.
2. We are a manufacture of roll forming machine, all of the parts
we made ourselves, so, we can insure the quality of our products.
3. Cangzhou Kingter Roll Forming Machine is a company integrating
production, processing, sale, trade, so we will give our customers
the best price.
FAQ
1 How can we install the spiral welded pipe roll forming machine?
a When finished the spiral welded pipe roll forming machine, you
can with your techinian or one of your worker to our factory
inspect the machine. While we run the spiral welded pipe bending
machine , we can teach your techinian how install the machine and
run the machine.
b If you do not plan to come the inspect the machine running, we
can send you the machine running vedios and machine manual which
telling how to install the machines.
c We also have a strong machine installing team which ever go to
custoer's country install many machines.
If you demand our technian to work with you, our techinian can go
to your place teach our worker's .
But, our techinian's accomodations should be arranged by your sides
and pay 50 USD/day .
