Metal Shutter Door Roll Forming Machine 0.3 - 0.6 Mm Raw Material Thickness

    Buy cheap Metal Shutter Door Roll Forming Machine 0.3 - 0.6 Mm Raw Material Thickness from wholesalers

    Buy cheap Metal Shutter Door Roll Forming Machine 0.3 - 0.6 Mm Raw Material Thickness from wholesalers
    • Buy cheap Metal Shutter Door Roll Forming Machine 0.3 - 0.6 Mm Raw Material Thickness from wholesalers

    Metal Shutter Door Roll Forming Machine 0.3 - 0.6 Mm Raw Material Thickness

    Ask Lasest Price
    Model Number : shutter door
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : Shipped in 30 days after payment
    • Product Details
    • Company Profile

    Metal Shutter Door Roll Forming Machine 0.3 - 0.6 Mm Raw Material Thickness

    3.5kW --12.5Kw Cold Roller Shutter Door Roll Forming Making Machine

    1.

    Metal Shutter Door Roll Forming Machine,Roofing Sheet Roll Forming Machine


    The color steel sheet is widely used in villa , holiday village , gardening industrial building , storage , scenic tourist area , pavilions , hotel , exhibition hall and so on . And we are emphasis on the detail and the technical update constantly.

    2.

    Metal Shutter Door Roll Forming Machine,Roofing Sheet Roll Forming MachineComponents:

    Uncoiler, Coil sheet guiding device, Main roll forming system,Post cutting device,Hydraulic station, PLC control system and Support table.

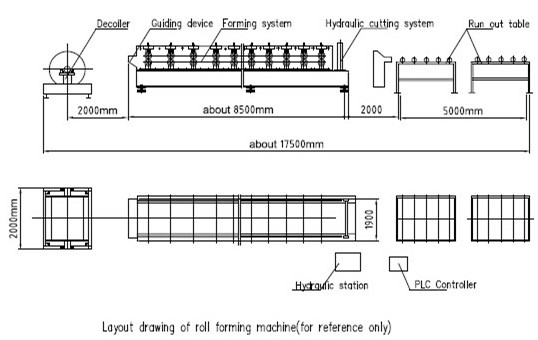

    3. Shutter Door Roll Forming Machine Working Flow:

    manual uncoiler—Roll forming machine—computer control system—hydraulic control system—form cutter

    4. Technical Parameter


    No.

    main parameter of Shutter Door Roll Forming Machine


    1Suitable to processGalvanized Steel
    2Width of the plate100mm
    3Rollers12stations
    4Dimensions3.5M*0.8M*1.2M
    5Power3KW
    6Thickness of the plate0.8-1.2mm
    7Productivity8-10m/min
    8Diameter of the rollerΦ50mm
    9WeightAbout 2T
    10Voltage380V 50Hz 3phases
    11Material of the cutting plateCr12
    12Hydraulic40#
    13Processing precisionWithin 1.00mm
    14Control systemPLC control


    Quality Metal Shutter Door Roll Forming Machine 0.3 - 0.6 Mm Raw Material Thickness for sale
