Metal Sheet Glazed Panel Roll Forming Machine For Building Raw
Material
Product Description
step tile roll forming machine can produce metal glazed tile.It's style originates from ancient Chinese architectures.Metal glazed tiles are laid side by side across and overlapping each other.metal glazed tile is lightweight, and can be
installed on top of an existing roof. Despite its light weight,
metal roofing provides increased wind resistance when compared to
other roofing materials.
1. what is the description of step tile roll forming machine
| Machine description | Quantity | Delivery time | Container type |
| step tile roll forming machine china | 1 SET | 40working days after deposit | 40GP |
2. what is the production process of step tile roll forming machine
Uncoiling--->Feeding material into machine-->Roll forming
--->Measuring length --->Step formed--->Auto
cutting--->Pruducts receving.
3. what is the specification of step tile roll forming machine
| Name | step tile roll forming machine |
| Material | Color steel sheet |
| Thickness | 0.3-0.8mm |
| Coil inner diameter | 450-550mm |
| Max coil out diameter | 1300-1600mm |
| Max coil width | 1250mm |
| Carrying capacity | 5T |
| Forming steps | 13rollers |
| Shaft diameter | 80 mm |
| Design type | pillar structure |
| Roller material | 45 # steel chrome plating chromium |
| Shaft material | 40Cr steel |
| Work speed | 4-12m/min |
| Transpor | by chain |
| Type of cutting | hydraulic |
| Cutting tolerance | whthin 1mm |
| Cutter | Gcr12 |
| Material of blades | Cr12 quenched |
| PLC | Delta |
| Counter | Omion |
| Voltage | as required |
| Dimension | 7000x1500x1910mm |
| Weight | About 5 T |
| Workers | 1-2 only |

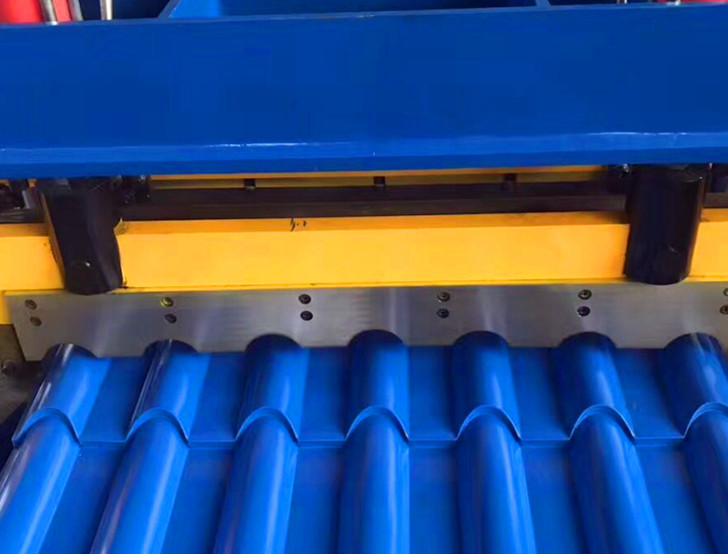

4. Details of step tile roll forming machine
5. What is the advantage of step tile roll forming machine?
(1)The system is easy to operate and use.
PLC: Delta(Can customize as customer require)
(2)the surface of the final product is very smooth and beautiful
without any scratch on the surface.(LOGO is appreciated)
(3)customized:design the machine according to your specification
and profile drawing.
6. What is the application of step tile roll forming machine?
step tile roll forming machineis extensively used in building
steel-structure large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages,
sanatoriums, hotels, villas, residences and different kinds of
greenhouses.
Company Information
Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional
manufacturer and exporter of cold roll forming machine chinas. All
products comply with international quality standards and are
greatly appreciated in markets throughout the world, such as Asia,
Africa, Europe,South America, Australia and so on.
We specialized in manufacturing Color steel roll forming machinery,
C U M Z purlin roll forming machine,Glazed tile roll forming
machine,floor deck roll forming machine china, shutter door roll
forming machine, highway guardrail roll forming machine, downspout
machine, welding pipe machine. For metal processing, we have
slitting machine, cutting machine, decoiler, punching machine and
others.
FAQ:
1. How to get a quotation?
Give me the profile drawing and thickness,this is the important.
Other spicific requirements is welcome,such as the speed,power and
voltage you want.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also
we accept the payment L/C, O/A , D/P.
3. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can
produce more than 6 kinds of panels.
4. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without
45 working days. If you need machines in a hurry, we can make it
for you less than a month.
5. What is your after-sale service?
Roll forming machine's warranty period is 12months,if the broken
parts can't be repaired,we can send new to replace for free,but you
need to pay the express cost yourself.we supply the technical
support for the whole life of the equipment.
