    Highway Guardrail Roll Forming Machine High Yield Strength Galvanized W Beam

    Ask Lasest Price
    Model Number : highway Guardrail
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 30 days after your pre-deposit
    • Product Details
    • Company Profile

    Highway Guardrail Roll Forming Machine High Yield Strength Galvanized W Beam

    Highway Guardrail Roll Forming Machine High Yield Strength Galvanized W Beam


    Machine Component

    De-coiler1 set
    Leveling device1 set
    Forming machine1 set
    punching device1 set
    Cutting device1 set
    PLC control box1 set
    Hydraulic pump station1 set
    Production support table1 se



    Decoiler

    TypeManual type(standard)Hydraulic type(option)
    Width600mm800mm
    Capacity5000kgs5000kgs-15000kgs
    Inner diameter450-550mm450-550mm
    Outter dimater1500mm1800mm


    roll forming machine

    ItemParameter detail
    Processing MaterialGI and Black Coils
    Material thickness3-4mm(standard), 3-5mm(customized)
    Machine frame360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
    Machine siding panel
    Plate typeCasting Pillar type(option)
    Plate thickness:20mmPillar thickness:35mm

    Forming stations14-18 stations (according to the material thickness)
    Machine rollershigh grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
    Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
    Machine Shaftφ90-100mm high garde No.45 steel after treatment,
    Machine spacersCNC lathing in high-precision and wire-electrode cutting
    Machine bearingsChina Haerbin bearing or SKF international bearing(option)
    Driving system2 inch chain or gear box(option)
    Machine power30kw-15kw(according to the size and thickness)
    Machine working speedwithout punching:8-12m/min or 10-30m/min(option)
    Machine testing methodAfter machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


    Punching device

    ItemParameter detail
    Frame processingthe whole levelling surface is made by drilling machine
    Mould materialCr12mov
    Mould processingwire eletrode-cutting for the mould shape, it will save pressure
    Hole sizeAccording to your request
    Hole numberAccording to your request
    Pressure20Mpa


    Cutting device

    TypeBearing Type cutting
    Highway Guardrail Roll Forming Machine High Yield Strength Galvanized W Beam
    Blade materialCr12mov quenching and grinding
    Frame processingthe whole bottom frame is grinding for high-precision
    Highway Guardrail Roll Forming Machine High Yield Strength Galvanized W Beam
    Blade processingwire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
    WorkingHydraulic type

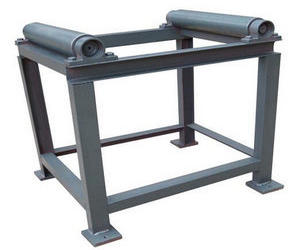

    Stacker

    TypeManual
    Highway Guardrail Roll Forming Machine High Yield Strength Galvanized W Beam
    Length2pieces, length is adjustable

    PLC

    Main itemParameter detail
    PLCDelta(standard) or according to your request
    InverterChina brand(standard) or according to your request
    Touch screenMcgs(standard) or according to your request
    EncoderChina brand(standard) or according to your request
    Voltage/HZ/Phase380v/50-60hz/3phase


    Payment type: 30% T/T prepaid and balance should be paid before loading
    Delivery time: 30 working days after receiving prepaid.
    Guarantee period: 18months free service/ pay service all the machine life
    Installation and training:

    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    Without visiting,we will send you user manual and video to teach you to install and operate.
    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
