    Glazed Roof Ridge Capping Glazed Tile Making Machine Rain Gutter For Building

    Ask Lasest Price
    Model Number : 800
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 SETS PER MONTH
    Delivery Time : Shipped in 30 days after payment
    • Product Details
    • Company Profile

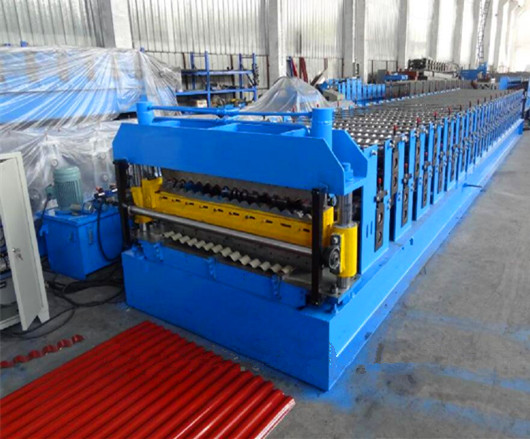

    Glazed Roof Ridge Capping Glazed Tile Making Machine Rain Gutter For Building

    Mold Forging Currogated Tile Cutting Machine / Roof Tile Production Line 5.5 Kw Power
    Product Description

    Working flow
    Roofing Sheet Roll Forming Machine , Roofing Corrugated Sheet Roll Forming Machine
    Machine components

    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Hydraulic Cutting Device1 Set
    4.PLC Control Box1 Set
    5.Hydraulic Pump1 Set
    6.Output table1 Set

    A. General

    Suitable MaterialQ235 or equivalent
    Material Thickness0.25-0.8 mm
    Material Width914, 1000, 1200, 1220 or 1250, as per the drawing
    DimensionAbout 7.9*1.3*1.1m(L*W*H) , as per the drawing
    Working SpaceAbout 17.9*2.8m(L*W) , as per the drawing

    Length of

    the Sheet

    You can set the length according to your need.

    It is controlled by PLC

    which can ensure the accuracy of ±1mm.

    Cutting

    Automatically stop and cutting when it comes to the set

    length.


    B. Components Details

    Roller MaterialHigh grade 45# steel. Hard chrome plating, 0.05mm.
    Main Frame350# steel. More stable and no shaking.
    Middle Plate

    16mm. We use thicker plates to ensure stability

    of our products.

    Forming Steps11-16, according to the drawing.
    Shaft MaterialΦ70 mm, high grade 45# steel.

    Treating process: tempering- finish turning,

    high rigidity, hard to deform.

    Cutting

    Blade Material

    Cr12, hardness HRC60-62.
    Treating process: heat treatment- plane abrasion- wire electrode cutting.

    C. Electric Components

    Suitable Power380V, 50 Hz, 3 phase or according to your need.
    Screen5.7 inch touch screen, easy to operate.
    PLCDelta DVP 14ES

    well-adapted to various conditions, such as moisture,

    electromagnetic disturbance.

    Frequency Converter

    DeltaVFD-M. It has the advantage of slowing down before cutting,

    to ensure the length accuracy (±1mm,

    far better than industrial standard ±3mm).

    Length

    Measurement Device

    Omron, made in Japan.
    It features with high accuracy and stability.

    D,RFQ

    1. Can you make the machine according to my design or photo type?

    A: Yes. We have an experienced team to work out the most suitable design and production plan

    for the machine.
    2: How can we be assured that you will deliver us quality machine with spare parts?

    A:1. Customers to send the technical people to our factory for checking the quality.

    2.We can send the technicians to the buyer`s factory for the installation of the machine.
    3.What policy of your garentee?

    A: Within the One-YEARS period, we could supply you the replacement parts free of charge

    for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
