    380V Highway Guardrail Roll Forming Machine Hydrualic Punching Cutting

    Ask Lasest Price
    Model Number : highway Guardrail
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 30 days after your pre-deposit
    • Product Details
    • Company Profile

    380V Highway Guardrail Roll Forming Machine Hydrualic Punching Cutting

    Highway Guardrail Roll Forming Machine Hydrualic Punching Cutting


    Working flow


    Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table


    Machine Component

    De-coiler1 set
    Leveling device1 set
    Forming machine1 set
    punching device1 set
    Cutting device1 set
    PLC control box1 set
    Hydraulic pump station1 set
    Production support table1 se


    Processing flow of Guardrail Highway Roll Forming Machine


    alibaba express galvanized steel Guardrail Highway Roll Forming Machine

    Components of Guardrail Highway Roll Forming Machine

    No.NameUnitQuantity
    15T decoilerset1
    2Guiding deviceset1
    3Leveling deviceset1
    4Punching systemset1
    5Main roll formerset1
    6PLC control stationset1
    7Hydraulic oil pumpset1
    8Cutting systemset1
    9stackerset1

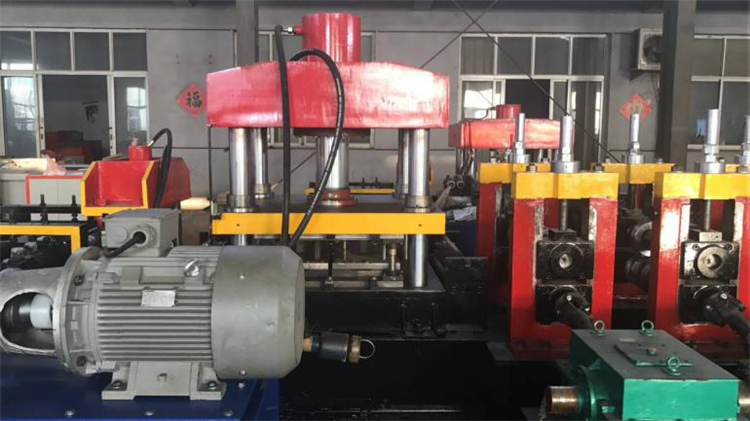

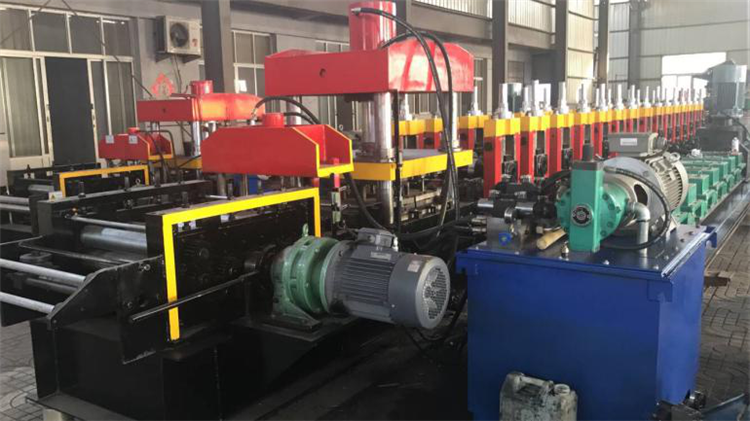

    some details of Guardrail Highway Roll Forming Machine

    alibaba express galvanized steel Guardrail Highway Roll Forming Machinealibaba express galvanized steel Guardrail Highway Roll Forming Machinealibaba express galvanized steel Guardrail Highway Roll Forming Machine

    parameters of Guardrail Highway Roll Forming Machine


    SeriesDetailsParameter

    Roll forming machine


    Guiding&leveling device

    Placed on the machine by seller
    Shaft numbers:11pcs
    Shaft diameter:80mm
    Shaft material: 45# steel
    Drive power:5.5kw
    Rolling shaft material45# STEEL
    Shaft diameter90mm
    Roller materialGB-Cr15 with heat treatment
    Rolling station15 stations
    Machine frameCast iron vertical structure
    Machine body400# H steel welded
    BearingChinese famous brand Harbin
    Work power22kw

    Control system

    Frequency brandDelta from Taiwan
    PLC brandDelta from Taiwan

    Hydraulic system

    Work typeHydraulic
    Punch modeFour pillar hydraulic powered punching system
    Driving methodBy Cylinder
    Motor power22kw
    Mold materialGB-Cr12
    Mold quantity2 sets
    Punching frame1 set
    Press power80T
    Cutting length tolerance±1.5mm


    Payment type: 30% T/T prepaid and balance should be paid before loading
    Delivery time: 30 working days after receiving prepaid.
    Guarantee period: 18months free service/ pay service all the machine life
    Installation and training:

    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    Without visiting,we will send you user manual and video to teach you to install and operate.
    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
