Pressing punching together with rolling forming machine

Such line like roll forming a metal fabrication process that involves the bending of metal strips to create a specified shape or design with various types punching holes which is composed by many elements. According to different punching profile and sizes, the punching machine will be different. A punch press is a type of machine that makes cut holes in the sheet material. The punching systems in the roll forming machine specially design into the sheet metal, suit to the budget amount and the speed required.

A press machine is any device that uses CNC pressing to make or change metal materials. Roll Forming Services with pre-notching, pre-punching.These roll forming operations are all done Inline with presses during the production of the Roll Formed Sections on a roll forming machine.

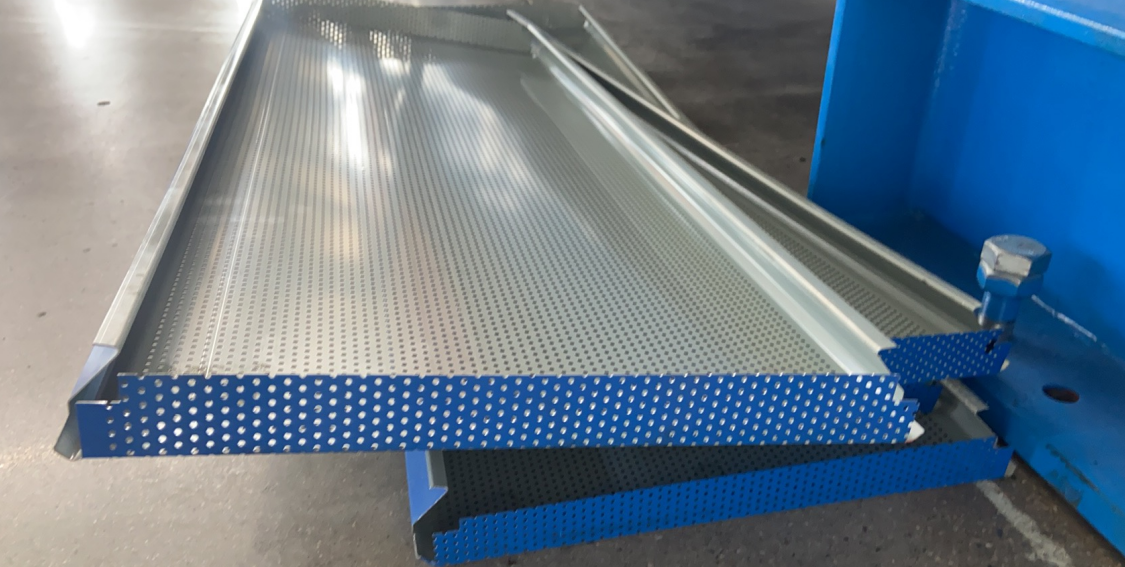

Take the following profile for your reference:

For this product first we need to do the punching and then do the rolling forming and shearing. So we have two options for the design.

Option 1: you can use the punching from decoiler to recoliler and then do the rolling forming.

Option 2: you can do the decoiler punching and then rolling forming directly. By this way the speed will be a little slower but you can save lots of the space and cost of the production line.

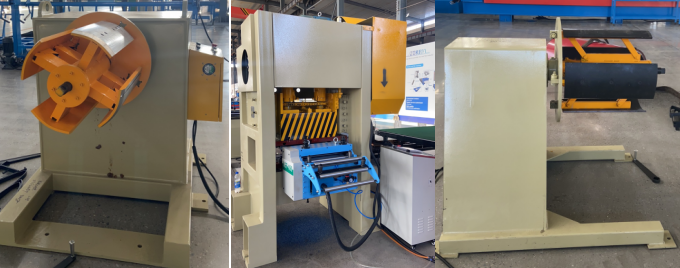

As default we use the option 1, here some elements for your reference:

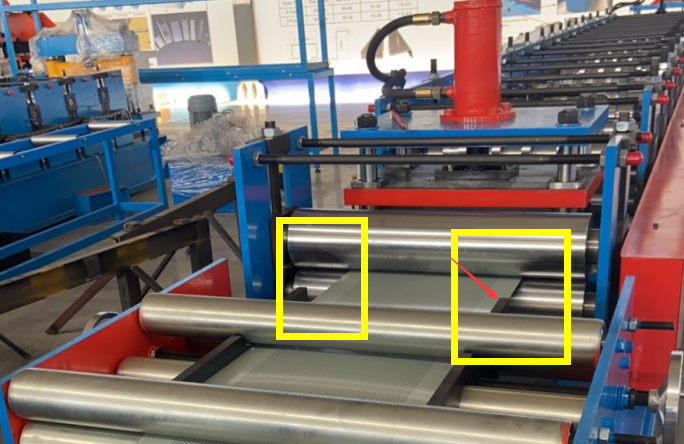

This profile we call it as ceiling panel, it has many process to be made, first cut the corner to make sure the panel corner shape nice.

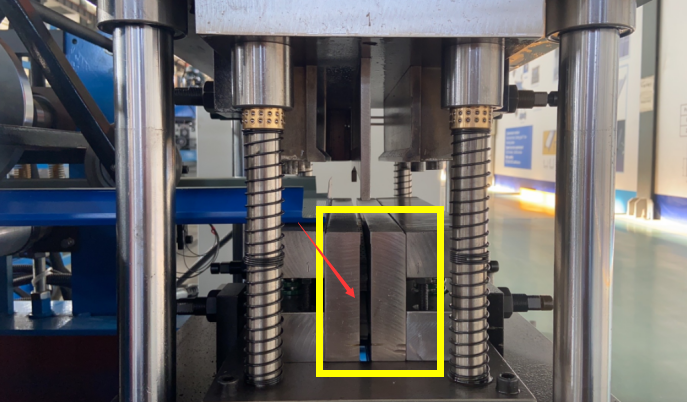

And comes to the last part, it needs to do the punching and shearing together.

So if you need the similar machine, please contact us at any time.
