Slotted angle light duty and heavy duty rolling forming machine

Slotted angle light duty and heavy duty rolling forming machine is designed to make the slotted angles in batch fully automatically. Slotted angle helps you build an efficient framing system for a variety of uses from machine guards to hand rails. Slotted Angle is the most versatile, time and cost effective construction material available for building carts, ladders, benches, shelving, cases, racks or any other type of structure. Made of either 12 or 14 gauge roll-formed steel. Here are some drawing profile for your reference:

Features of slotted angle profile:

• Easy to use... Just measure, cut and bolt together.
• Scientifically designed pattern of holes and slots are perfectly positioned for bolting pieces together at various angles.
• without needing to drill holes.
• No special tools required but our slotted angle cutter cuts completely through with one fast easy stroke.
• Available in 96”, 120” and 144” lengths in 14 gauge and 12 gauge steel.
• 100% reusable. Even short pieces of angle can be used as a cleat to join together angle lengths into longer ones.
• Old outmoded structures can be unbolted and reassembled into new ones.

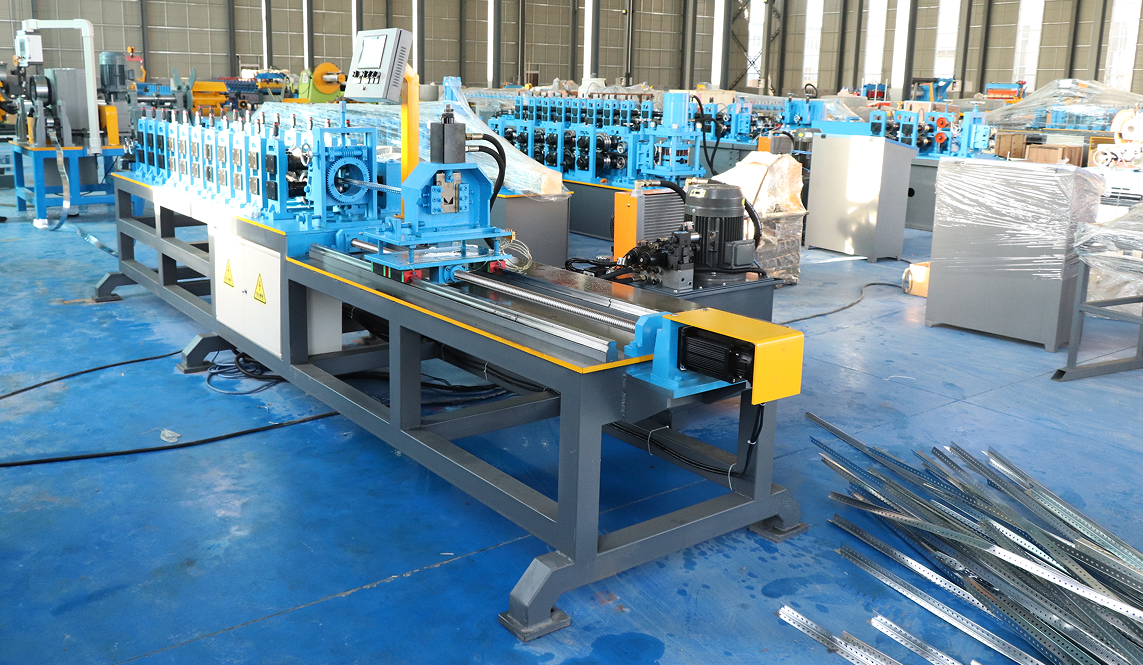

Slotted angle light duty and heavy duty rolling forming machine

For the punching part, we have two options for your reference:

Option A:

If you do not have speed requirements, you can choose the CNC punching machine. The speed is around 15 to 20 meter per minute.

Option B:

If you do have speed requirements, you can choose ROTARY punching machine. The speed is around 50 to 80 meter per minute.

14 Gauge – For Average Jobs Cold-rolled high strength steel – recommended when extreme load are not required • Nominal size 1-1/2” x 1-1/2” and 1-1/2” x 2-1/2” • Available in 8’, 10’ and 12’ lengths, painted • Packaged 10 pieces per bundle (Prices are per piece, but must be ordered in quantities of 10)	12 Gauge – For Heavy Duty Jobs Heavier weight cold-rolled high strength steel – recommended for use when greater strength and carrying capacity is required. • Nominal size 3” x 1 1/2” • Available in 8’, 10’ and 12’ lengths, painted • Packaged 10 pieces per bundle (Prices are per piece, but must be ordered in quantities of 10)
Note: not all profiles could be made by the rotary punching machine. Some complicated holes only could be used by normal CNC punching machine.

Slotted angle light duty and heavy duty rolling forming machine working videos for your reference:
