    3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type

    3D groove T-grid T-runner rolling forming machine fully automatic type

    3D groove T-grid T-runner rolling forming machine fully automatic type is designed to make the 3D groove T-grid T-runner in batch fully automatically. The T3D groove T-grid T-runner mainly solves the shortcomings of traditional ceiling suspended T-shaped keels, such as low load-bearing capacity, weak bending resistance, poor decoration, and difficulty in fixing heavy objects when decorating the ceiling, which cannot provide support for large ceilings. The T-shaped three-dimensional groove through keel is composed of a vertical rib plate part and a groove profile part, and the cavity and slide rail of the groove profile part are more conducive to the suspension and movement of the decorative object, The groove profile has a more three-dimensional visual effect.

    Here are some popular sizes for your reference:

    The sizes
    Main T

    45*15*0.4*3600mm

    42*15*0.4*3600mm

    38*15*0.3*3600mm

    32*15*0.3*3600mm

    0.225 piece/square meter
    Middle T

    45*15*0.4*1200mm

    42*15*0.4*1200mm

    38*15*0.3*1200mm

    32*15*0.3*1200mm

    1.35 piece/square meter
    Cross T

    45*15*0.4*600mm

    42*15*0.4*600mm

    38*15*0.3*600mm

    32*15*0.3*600mm

    1.35 piece/square meter

    Here are some finished production pictures for your reference:

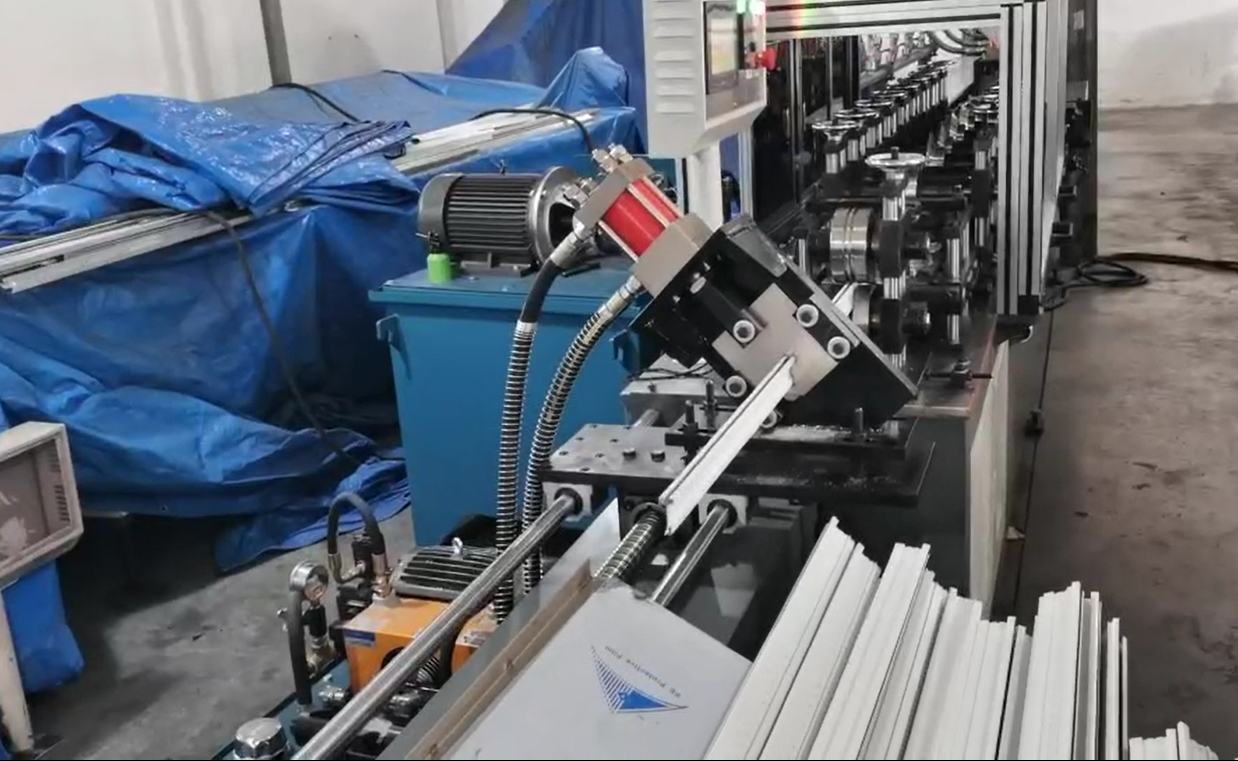

    3D groove T-grid T-runner rolling forming machine fully automatic type:

    punching part

    This part is for punching.

    Main rolling forming machine

    With the protection cover.


    Frame welding: thickness 20mm, rust removal

    Roller: Roller material Cr12MOV. Inner diameter 39, minimum roller outer diameter 90, quenched HRC 55-56, 19 roller station

    Transmission: 4KW+reducer transmission, each track is chain transmission

    Guide pillar: thickness 25, cadmium plated

    Axis: 40CR steel adjusted to processing

    Electric control: PLC+touch screen, fully automatic 8 mold materials SKD11, HRC 58-60 machine comes with 6 sets of punching middle hole molds and 2 shear molds (a total of 8 sets)

    Shear length 6/8/10/12 feet and Brazilian dimensions

    Here is 3D groove T-grid T-runner rolling forming machine fully automatic type working videos for your reference:
