K Style Galvanized Steel Gutters Rolling Forming Machine

A rain gutter, eavestrough, eaves-shoot or surface water collection channel is a component of a water discharge system for a building. It is necessary to prevent water dripping or flowing off roofs in an uncontrolled manner for several reasons: to prevent it damaging the walls, drenching persons standing below or entering the building, and to direct the water to a suitable disposal site where it will not damage the foundations of the building. In the case of a flat roof, removal of water is essential to prevent water ingress and to prevent a build-up of excessive weight. Here are some finished product pictures for your reference:

Galvanized k-style steel gutters are the strongest of all the different metals that are commonly available for gutter systems it also could be PPGI , Aluminum or copper. The heavy gauge steel gutters are dipped in a molten zinc bath to provide a protective coating from the elements to keep it from corroding and rusting over time.

K-style gutters have hidden hangers to allow it be installed directly to the fascia board and there are also free hanging gutter brackets available that allow it to be suspended from the roof deck.

And the gutters are available in 5", 6", 7", and 8" profiles but for the machines are also different rolling forming machines. The 5", 6" and 7" gutters are made from 26 gauge steel and the the 8" gutter is made from 24 gauge steel. Here is one drawing profile for your reference:

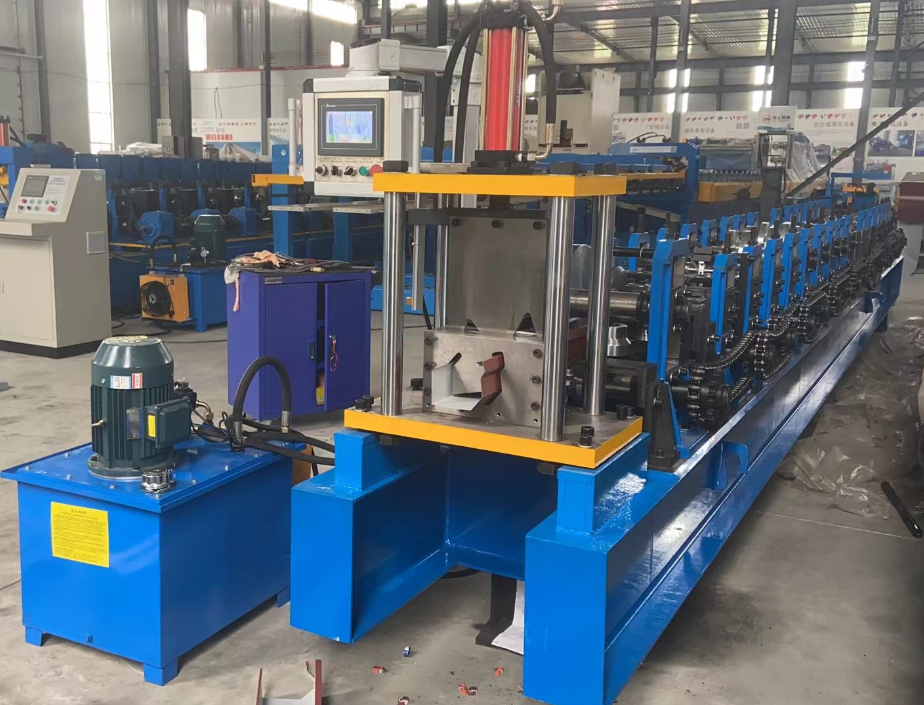

K Style Galvanized Steel Gutters Rolling Forming Machine

Main Components of Steel Gutters Rolling Forming Machine

• 3T Manual Decoiler ---------------------------------------------------------------------------1 Set
• Guiding Rolls--------------------------------------------------------------------------------2 Pieces
• Pre-cutting/Feeding Platform--------------------------------------------------------------1 Set
• PLC Control System(PLC)------------------------------------------------------------1 Unit
• Hydraulic Pump Station--------------------------------------------------------------------1 Unit
• Hydraulic Cutting Device-------------------------------------------------------------------1 Set
• Manual Receiving Table---------------------------------------------------------------------1 Set

K Style Galvanized Steel Gutters Rolling Forming Machine Parameters:

Base Frame Structure: 350 H-beam welded

Sidewall thickness:16mm A3 Carbon Steel seamless welded with base frame

Roller Stations: 18 forming units

Connect Bar:Diameter 25mm galvanized steel rod

Roller Shaft(Solid):70mm-0.01~-0.03 with Key-way

Shaft Material(Hard):High grade 45# steel,lathe then polishing smoothly

Roller Material(Hard):High grade 45# steel,CNC lathe then chromed plated 0.05mm

Bearing type: standard 6210(Wanxiang,Wuxi), single units inside wall box

Screw and bolts: Common 8.8 standard

Transmission method:0.6 inch (Jindun,Hangzhou)

Driving motor:4.0KW(Lichao,Shanghai)

Motor reducer: 4.0KW (Wujin,Changzhou)

Forming speed:15 to 20m/min

Application and where to use of the gutters:

Here is the machine working video for your reference:
