PBR panel, Max rib panel , Ag panel metal roofing sheet rolling forming machine

PBR panel, Max rib panel , Ag panel metal roofing sheet rolling forming machine is designed to make the metal roofing sheets in batch fully automatically. PBR panel, Max rib panel , Ag panel metal roofing sheet are quite popular in USA and South American. Here we will take those drawing profile for example to show you how our metal roofing sheet machine is designed.

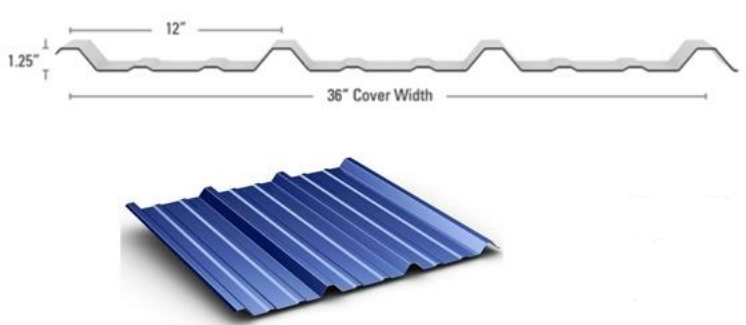

R-Panel roofing sheet

R-Panel is a multi-use wall and roof panel used primarily in pre-engineered metal building applications. R-Panel is also a popular choice for residential metal roofing, especially in the Southwest. An optional purlin bearing leg (PBR] rests on purlins and provides support for fastening the panel lap.

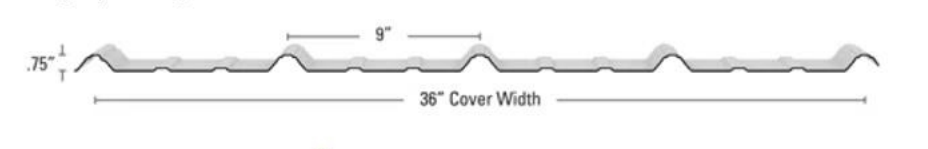

Max- Rib Panel roofing sheet

Max: Rib is a low profile (3/4") panel that is equally well suited for residential roofing and post frame applications.

Varying applications, end uses, and expectations require different metal panel alternatives. Fortunately, Zhongtuo

popular Max-Rib profile is available in five distinct options: Max-Rib UItra, Max Rib I, Max-Rib 100, and Max-Rib

Commodity/Liner. The best choice for your individual project depends on factors such as performance, desired

longevity, and budget.

The PBR metal roof profile:

The PBR metal roof and wall panel is a high-quality, versatile option. They can be easily installed both horizontally and vertically, ensuring a functional design that meets the requirements of your customers' building projects.

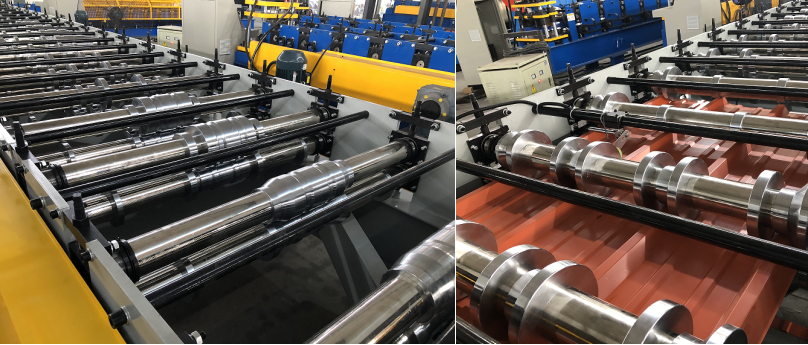

PBR panel, Max rib panel , Ag panel metal roofing sheet rolling forming machine:

And if you like to add the cut to length function, we can also add for you. The cut to length could be together with the PLC and help you cut the coil to pieces and then use for ridge cap or gutters bending profile.

Machine base frame

1.There are diagonal brace in the machine base frame,which can make the machine frame more stable and stronger.

2.After the whole welding, vibration is used to weld the stress. After large-scale planer machining, the horizontal and rigidity of the frame are ensured.

3. Hand wheels on both sides can be used to adjust the feeding width.

4. Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.

5. There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

As to the decoiler and stacker, you can choose the manual one or hydraulic one according to your requirements.

PBR panel, Max rib panel , Ag panel metal roofing sheet rolling forming machine working videos for your reference:
