    Hydraulic Decoiler Plc Double Layer Roll Forming Machine

    Double Layer Roll Forming Machine

    Double Layer Roll Forming Machine is designed to make the metal roofing sheet in the double layer forms, that means one machine can make two profiles by the rolling forming machine principle. In the following part, let us take the following drawing profile for example:

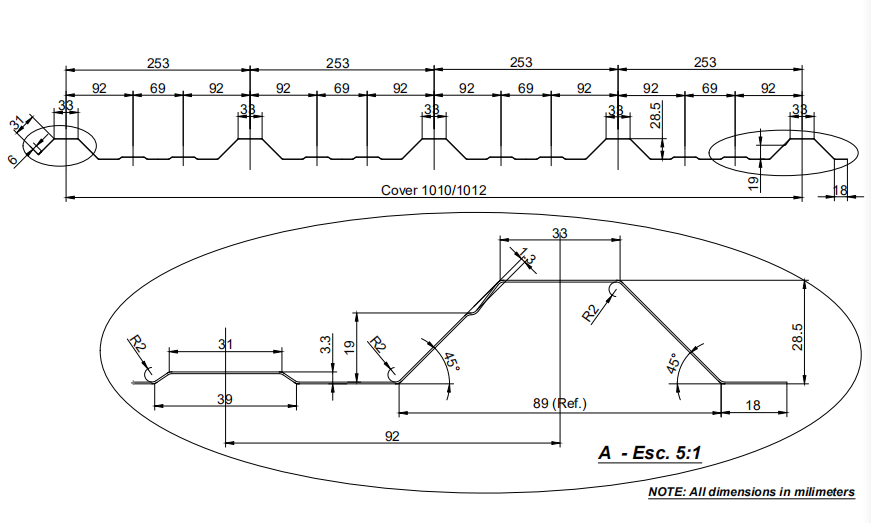

    First IBR Layer:

    IBR first layer drawing profile

    Second layer:

    Round wave drawing profile

    Double Layer Roll Forming Machine we design like this:

    Double layer roofing sheet machine

    Parameters of the double layer machine

    1. Description Of Goods: Double Layer Roll Forming Machine

    Packing List:

    Hydraulic Decoiler or manual decoiler ---------- 1 set;

    Main Roll Forming Machine ------- 1 set;

    3M Simple Collecting Product Table -- 1 set;

    Hydraulic Station -------------- 1 set;

    PLC Control Cabinet ------------ 1 set;


    Double Layer Machine Production Line Layout And Process Flow:

    Double layer machine working flow

    No.ItemSpecification

    Whole


    Line

    Working Speed0-20m/min
    Total Power22kW; 380V-50Hz-3Phase
    Equipment Weight8.5 Tons
    Equipment Dimension8500mm*1850mm*1500mm
    Container1*40”GP
    Equipment ColorBlue Or Customizable
    Equipment PackageNude Package
    Protective CoverOptional

    For the hydraulic decoiler 7 ton, 8 ton or 10 Ton decoiler, we make it like the following pictures:

    Hydraulic decoiler

    No.ItemSpecification

    Hydraulic


    Decoiler

    Decoiling TypeActively Uncoiling Type
    Loading Capacity12 Tons
    Loading WidthMax. 1250mm
    Coil Inner Diameter450-550mm
    Coil Outer DiameterMax. 1500mm
    Motor7.5kW+3kW

    Double layer rolling forming machine Images And Specifications

    No.ItemSpecification

    Main Roll

    Forming Machine

    Main Forming Power7.5 kW; 380V-50Hz-3Phase
    Speed0-20m/min
    Drive Type1'' Single Chain
    Machine ArchitectureMidde-plate Construction; 20mm Thick
    Roller Station18 Stations + 18 stations
    Roller Shaftφ75mm Solid Shafts, with quenched
    Roller

    45# Steel HRC58-62°;

    Surface Hard Chromium Plating

    BearingChinese Famous Brand Harbin
    Main Frame400# H-beam Steel Welded

    Rollers of the double layer machine

    Roller station of double layer machine


    For the double layer machine, it could be either two IBR profiles or one IBR with one step tile. For this type machine, if you want to know more information, please contact us at any time.
