5 Inch rain gutters rolling forming machine

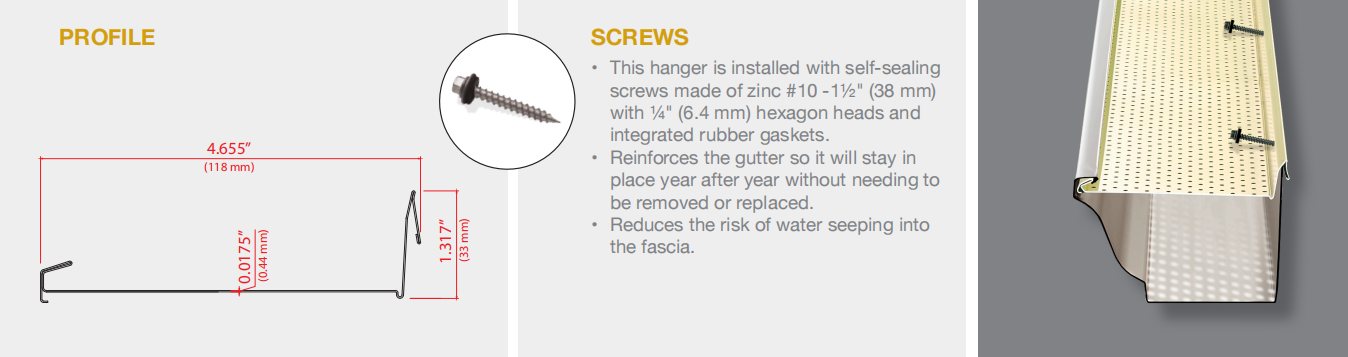

5 Inch rain gutters rolling forming machine is designed to make rain gutters in batch fully automatically. Gutters are used for protecting the house from rain and snow and then put the water to the right place. Here we will share one type 5 Inch rain gutters rolling forming machine. Here is the drawing profile from clients for your reference:

About the installation of this type rain gutter:

5 Inch rain gutters rolling forming machine Design:

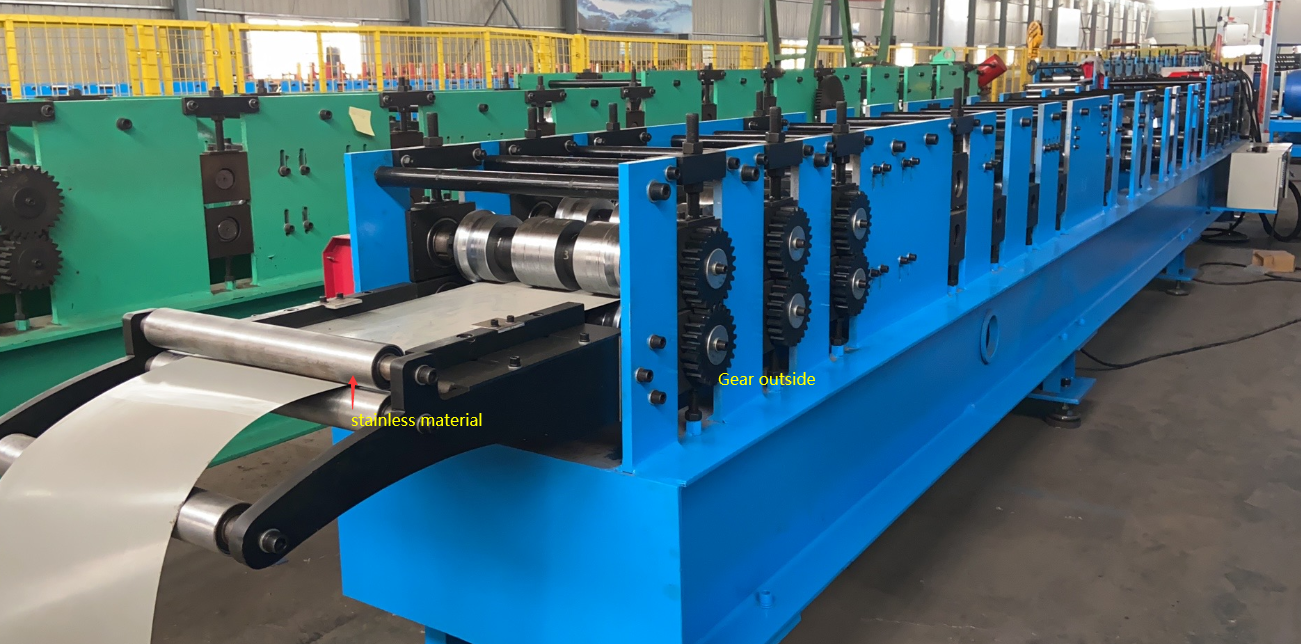

More details of the gutter rolling forming machine for your reference:

1. For all the leveling roller we choose the stainless material with gear inside to make sure the coil could be sent to machine easily without scratching the surface of the coil.

2. For the first three roller station we put the gear outside. It is good when feeding the coil more powerful.

3. The machine frame we use the thick steel and slop to make the sure the machine strong enough to use for a long time.

4. We choose the portable PLC for easy installation and easy to operate like the smart cellphone.

5. We have the seriously quality control system.

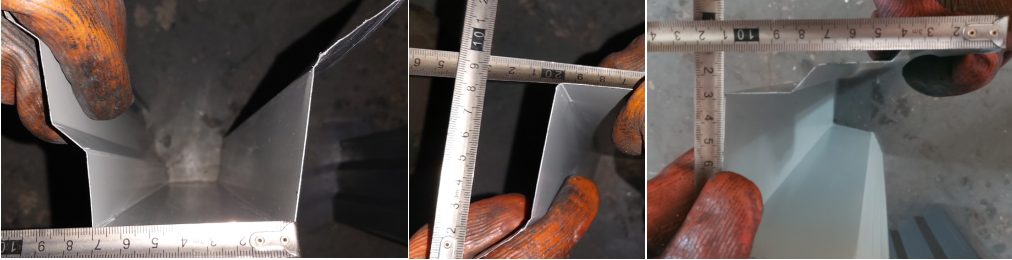

How we control the quality of finished product rain gutter:

PERFORATIONS of the cover

• 7/64" (2.8 mm) in diameter

• Drains 29.7" (754 mm) of water per hour

• Offers the perfect balance between maximum drainage and debris protection

If you want to make such sheet we also can design for you.

we can manufacture contains: roofing sheet machine, CZ purlin machine, light steel gauge machine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machines, rack system machines, floor decking machine, stone coated steel roofing sheet machine as so on. The company has passed ISO9001 quality control system certification, European CE safety certification, North American CAS electric certification, and has instill the concept “time is money, quality is life, customer is the king” into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowadays our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients.
