Worm Pattern Embossed Aluminum metal embossing machine

Worm Pattern Embossed Aluminum metal embossing machine is also called as the Stucco Orange Peel Pattern Worm Embossed sheet process machine. Here are some embossed pattern for your reference:

Supported material:

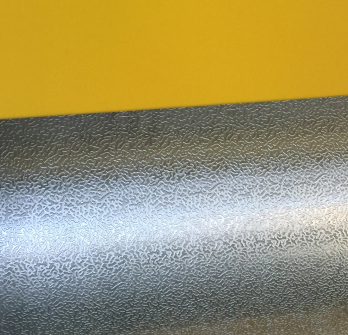

Worm Pattern Embossed Aluminum Sheets:

Thickness: 0.5-1.5mm
Width: 300-1600mm
Length: 500-8000mm
Material (alloy): 1050, 1060, 1100, 3003, 5005, 5052, 5083, 3105,3005
temper: Temper:Stucco embossed sheet O, H12, H14,H16, H18, H22, H24, H26
compass patter / two bars/ three bars/ five bars ,tear bar,.orange peels,wooden embossed,stucco embossed,half ball.
various size & thickness.

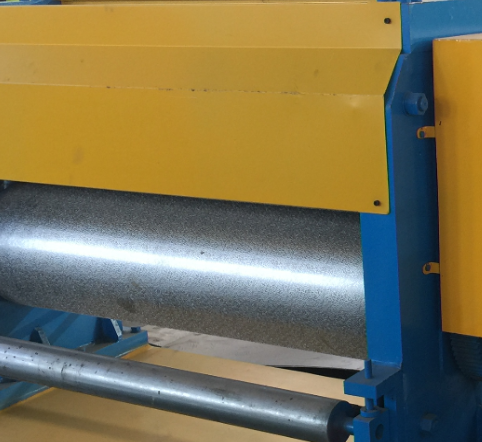

Worm Pattern Embossed Aluminum metal embossing machine:

Mechanical Performance of Worm Pattern Embossed Aluminum Sheets:

Embossed aluminium sheet's mechanical performance in room temperature should accord with GB/T8544-1997
Appearance Clear Texture, Smooth edges no burrs. There can't be defects such as split, erosion and holes on the surface which effect using.

Application of Worm Pattern Embossed Aluminum Sheets :

Worm Pattern Embossed Aluminum Sheets is widely used in decoration,insulation,etc, like the other products have good thermal conductivity, heat dissipation due to the special nature of the pattern. Such materials are widely used in the fields of refrigerator, wine cabinet, solar panel, decorative aluminium product, lighting fixture, lighting box, sanitizer, kitchen cabinet and central air conditioning system.At present, in the refrigeration industry, the 3003 series of rust-proof aluminum coil are widely used; In pipe insulation and packaging 1000 series are widely used.Welcome your inquiry.

Worm Pattern Embossed Aluminum metal embossing machine parameters:

(2) Embossing machine (2 sets)

• Embossing roller: ø480*1400;
• Material of embossing roller:60CrMnMo
• Pattern laser engraving as customer’s sample;
• Hardness of embossing roller surface: HRC 58~62
• Depth of hardness surface:5-10mm
• Bearing: Torrington spherical roller bearings ,TWB 3003136 ;
• Embossing thickness adjusted through the dial.
• Bearing box: 400*400*160mm .
  Ø Driving: 11kw AC motor,reducer:BWED53-17*11-11KW 4P
• Speed : 1-30m/min
• Pressure mode: hydraulic system, ø150 oil cylinder 2pcs
• Closed shields, safety devices. Emergency stop switch
