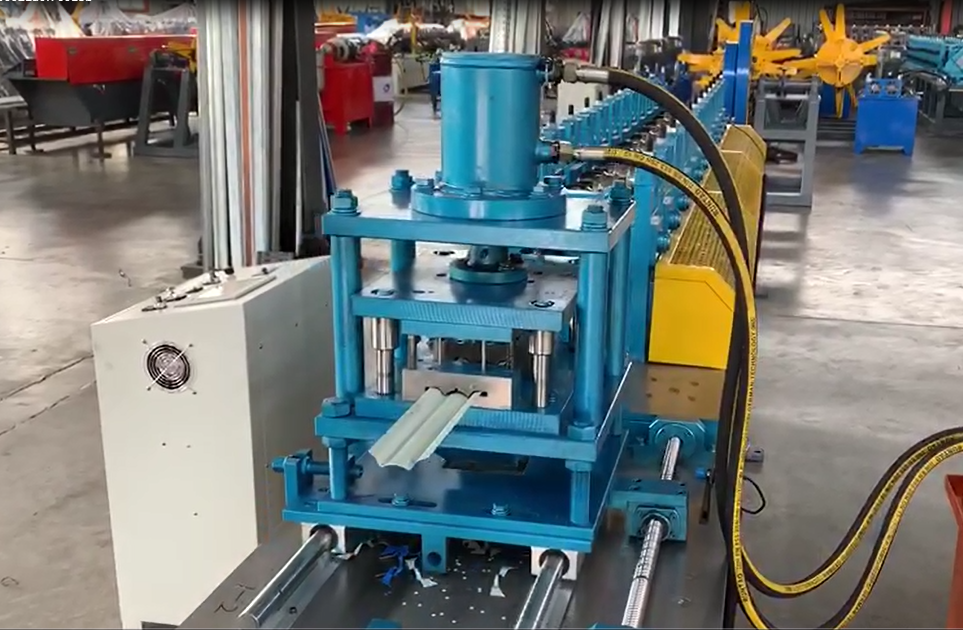

Picket fence rolling forming machine for Russian

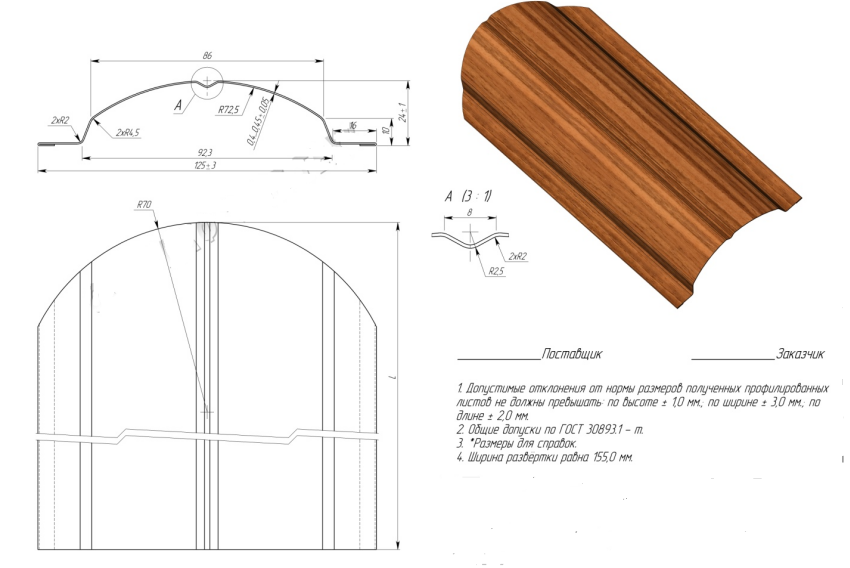

Picket fence rolling forming machine for Russian is designed to make the metal fence in batch fully automatically. Picket fences are a type of fence often used decoratively for domestic boundaries, distinguished by their evenly spaced vertical boards, the pickets, attached to horizontal rails. Picket fences are particularly popular in the United States, with the white picket fence coming to symbolize the ideal middle-class suburban life. Here are some popular drawing profile for your reference:

Picket fence rolling forming machine Design:

1).Number of forming steps: 12 steps

2).Shaft material:45# steel,

Roller material:CR12 Mov

Outer diameter:60mm

3).Transport: by Gear

4).Forming speed:25m/min

5).Motor:3 kw

6).Voltage:380v,50Hz,3phase

Advantages of Picket fence rolling forming machine:

1. Speed it can reach 25m/min per minute.

2. The frame we use the molding frame of thickness 25 to 35mm.

3. The material of rollers we use Gcr12 for long time to use.

4. The shearing we use hydraulic shearing, it can cut the lace and punching holes for the connection.

5. PLC control, it can cut length at specified length within 0.5mm error.

6. As the smooth rollers it will not scratch the surface of the coil to make sure the surface nice after rolling forming.

7. Strong base frame for long time to use.

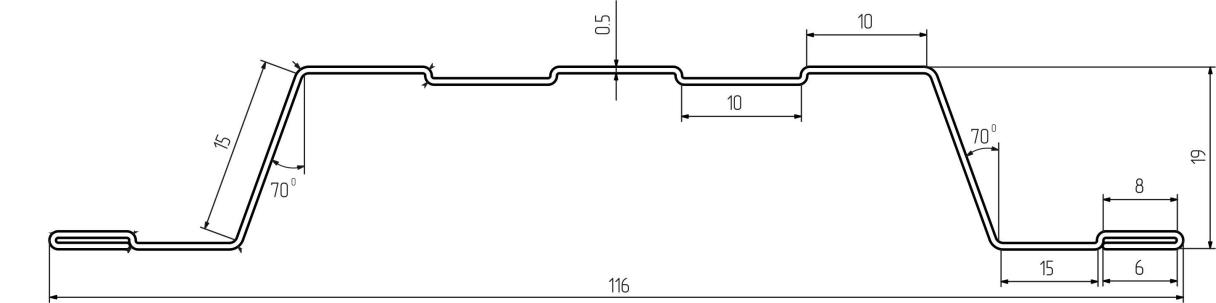

Here are more types of drawing for your reference:

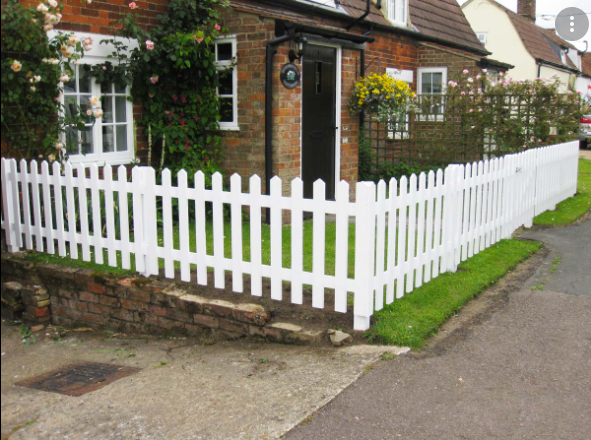

Where to use and application of metal fence:

we can manufacture contains: roofing sheet machine, CZ purlin machine, light steel gauge machine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machines, rack system machines, floor decking machine, stone coated steel roofing sheet machine as so on. The company has passed ISO9001 quality control system certification, European CE safety certification, North American CAS electric certification, and has instill the concept “time is money, quality is life, customer is the king” into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowadays our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients.
