    1.2mm Galvanized Steel Floor Decking Forming Machine 28 Rolling Stations

    Ask Lasest Price
    Brand Name : ZTRFM
    Model Number : 002
    Certification : CE, SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30 SETS/MONTH
    Delivery Time : 60 WORKING DAYS
    • Product Details
    • Company Profile

    1.2mm Galvanized Steel Floor Decking Forming Machine 28 Rolling Stations

    Metal decking machines for USA

    According to our experience, Zhongtuo has made many machines of making decking profiles in batch. Here we make the list of those machine for your reference.


    Types Of Metal Decking Profiles for USA


    Roof Decking: Structural steel deck that's used for roofs, canopies, walls, and gates

    Floor Decking: Metal deck that's used for structural concrete. It has embossing in the flutes of the steel decking that will bond with the concrete. This creates a composite deck system.


    Steel Form Decking: These panels are smooth and don't have embossing along the interior flutes of the decking. It's not a composite floor deck. It's only purpose is to be used as a stay in place form that will support the weight of the concrete while the concrete slab cures.


    Punchlok II: This is a patented metal deck system that was created by Verco and Vulcraft. It's not so much a style of steel decking, but refers to the required side lap connection. Punchlok II is crimped with a special Punchlok II tool. This allows for the use of lighter gauge metal deck and creates higher diaphragm shear values.


    Here are some metal decking types for your reference


    Roof decking profile- B decking N Decking

    roofing decking drawing


    Floor Decking B-36 Formlok

    Metal decking


    Composite Floor Deck


    Dovetail Decking


    Dovetail Decking

    Acoustical Metal Decking


    Acoustical Metal Decking


    Villa House Decking

    Villa house decking



    Metal decking machines for USA

    Metal decking rolling forming machine

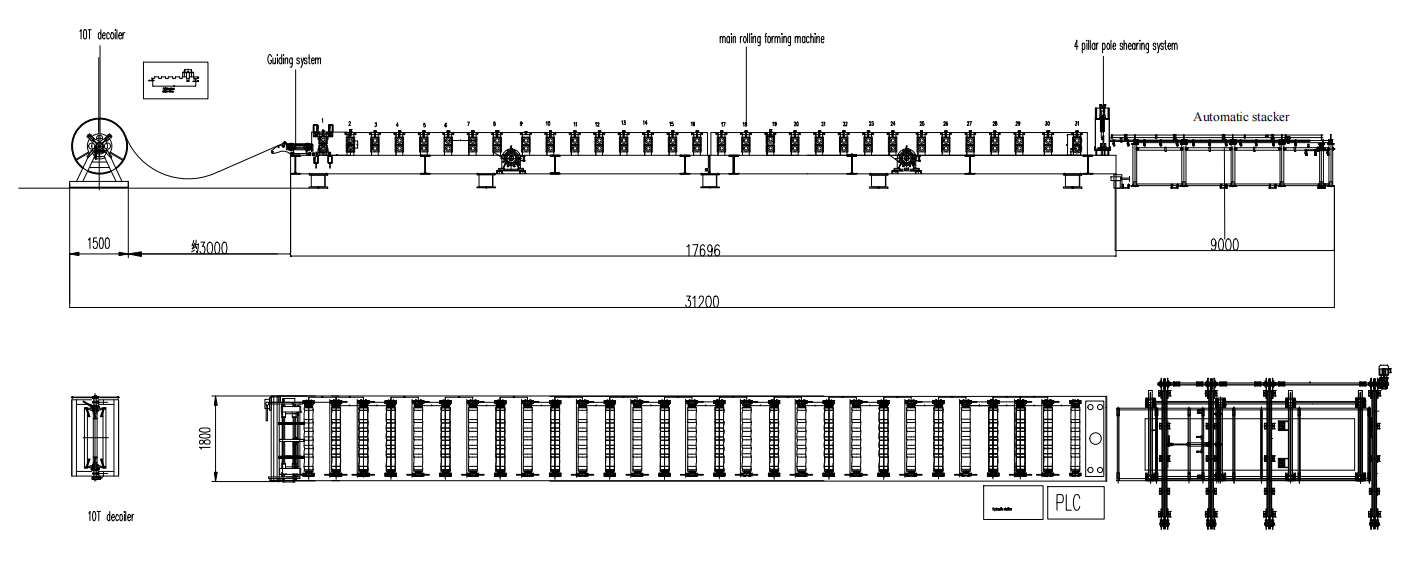

    Metal decking machines working flow:

    Decoiler (Manual decoiler or hydraulic decoiler optional----> Metal decking rolling forming machine -----> receiving table or automatic stacker( optional)

    Machine working flow of metal decking


    Metal decking machines Features:

    1. Adopt 85-95mm solid shaft and H-shaped steel base frame, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term machine use life;

    2. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final deck.

    Metal decking elements

    3. Our cut blade frame is stress-relieved to ensure that it is not deformed during long-term production and makes the final product smooth.

    4. The steel decks are flat, high precision within 1mm, and the effective width is controlled within 5mm;

    5. Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the machine, and the cutting length tolerance is within ± 2mm

    6. Forming speed can reach 8-12 meters per minute

    7. The machine weighs about 15-18 tons

    decoiler and stacker


    Wide Variety of Metal Decks Profiles, here I list some of them for your reference:

    For metal deck manufacturer, carries metal deck products in a variety of depths, widths, gauges, and finishes. Deck products include roof deck, composite deck, and form deck. Galvanized provide long-lasting, corrosion resistant decking for roofing and flooring requirements in the construction industry. The most economical finish for metal deck is prime painted grey over bare steel. Typically, this finish provides adequate temporary protection to the base metal of the metal decking during construction.

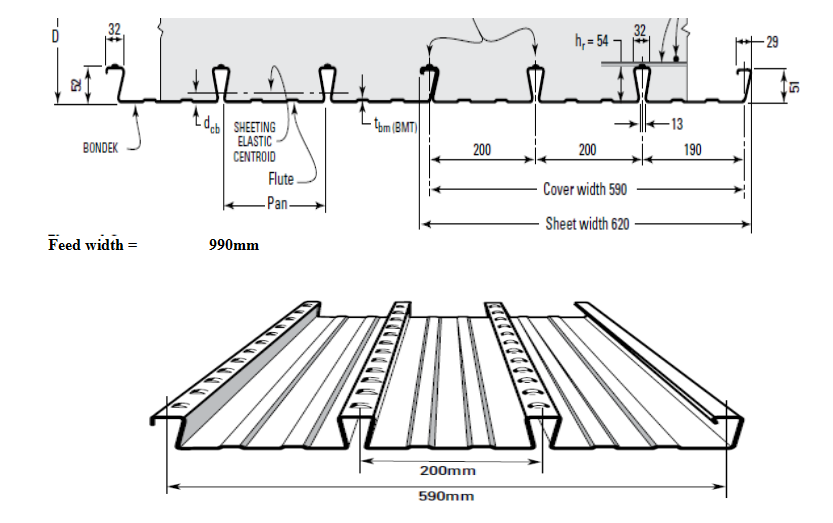

    Drawing of metal decking

    More drawing profile of metal decking


    Metal decking machines for USA Working Video for your reference:
