Thin sheet horizontal round wave making machine

Normally speaking, the round wave roofing sheets are made by the metal rolling forming machines. But for South African and some area, they would like to use some thin sheet like the thickness from 0.13 to 0.2mm to make the metal roofing sheets. Limited by the rolling forming machine characters, it cannot be made by rolling forming machine, as it will be torn into pieces.

Based on this need, barrel corrugated sheet rolling machine is developed based on the needs that thin sheet cannot be made to roof sheet by traditional roll forming machine. It can process material thickness from 0.15 to 0.30 mm and the roofing sheet length could be customized according to customer’s personal requirement. But limited by roll forming method, this machine needs to feed sheet and receive sheet by manual. ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

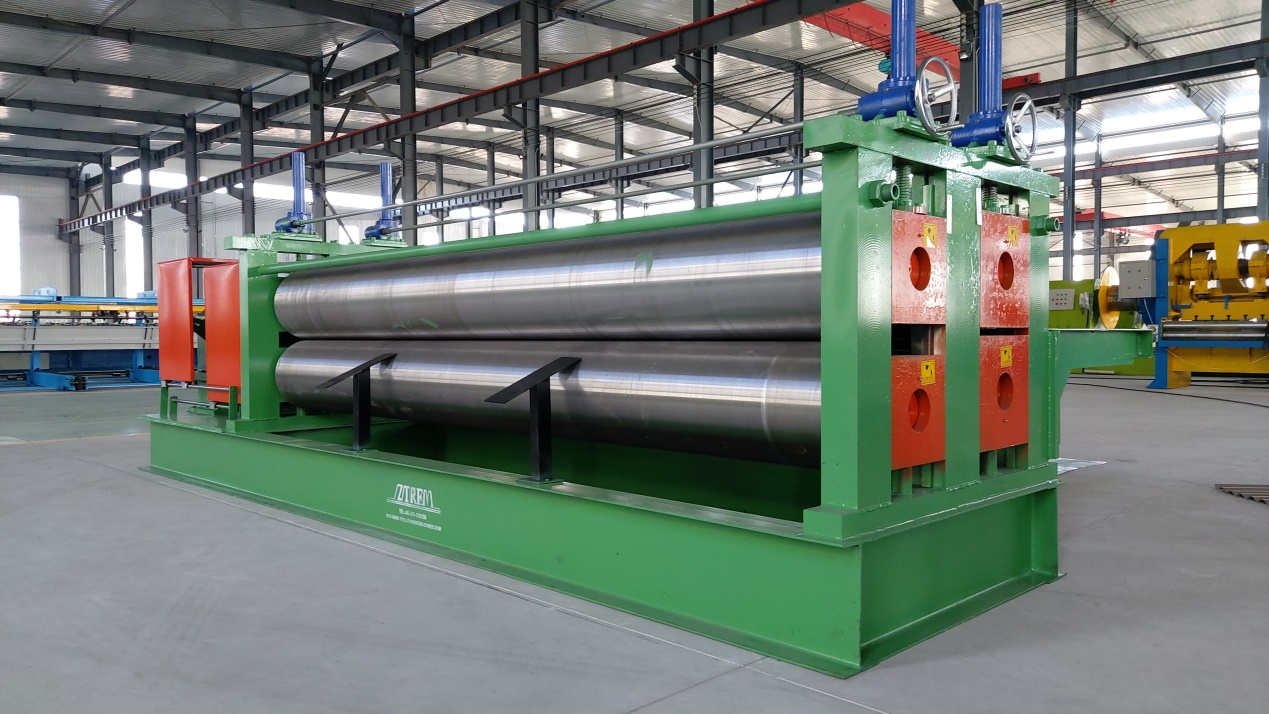

Using this type horizontal round wave making machine, first you need to cut the long coil into pieces, which the length is specified what you need. And then feeding coil to machine by pieces. Here is the machine picture for your reference:

When the profiles made by the horizontal round wave making machine, it will be cruved like the following:

Thin sheet horizontal round wave making machine parameters

1. .Roller station:2 sets
2. .Roller diameter:300mm,Material:45# steel
3. .Speed :15piece/min
4. .Weight:8.5T
5. .Voltage:380v,50hz,3ph
6. Motor: 11kw

When choose horizontal round wave making machine ?
1. When you want to make many types round wave,like different wave height and different wave distance.
2. When thickness between 0.13 to 0.25mm.

Why Choose Zhongtuo Horizontal round wave machine?

For different thickness, it is easy to adjust, we adopt turbocharger adjustment method, only need to adjust one side; Other, they use the normal handrail, acuracy and effectiveness will be lower

Common problem when using Horizontal round wave machine

1. The R angle is too small, and the arc feels shocking and unsightly
2. The wave crest is not right, and the arc length on both sides is different
3. Edge rebound
The smaller the side, the harder it is to press, the thinner the harder it is
How we solve it?
1. Enchance the shaft process hardness and accuracy.
2. Carefully processing gear.
3. Meanwhile if you like,we can also use the gearbox as transmission method, but price will be a little higher.

Horizontal machine needs thin sheet cut to length machine:

we can manufacture contains: roofing sheet machine, CZ purlin machine, light steel gauge machine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machines, rack system machines, floor decking machine, stone coated steel roofing sheet machine as so on. The company has passed ISO9001 quality control system certification, European CE safety certification, North American CAS electric certification, and has instill the concept “time is money, quality is life, customer is the king” into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowadays our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients.
