    Box Channels Cold Rolling Forming Machine Automatic Multi Size C Channels 380V

    Ask Lasest Price
    Brand Name : ZTRFM
    Model Number : Light keel machine
    Certification : CE. SGS
    Price : 32500 USD
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Box Channels Cold Rolling Forming Machine Automatic Multi Size C Channels 380V

    Automatic multi-size C-Channels & Box Channels rolling forming machine

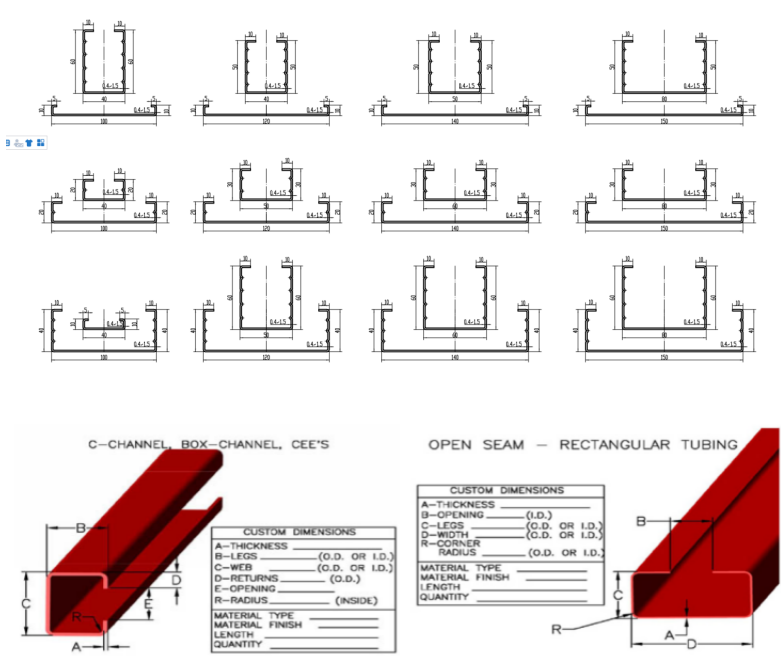

    Automatic multi-size C-Channels & Box Channels rolling forming machine is designed to make the many sizes C profiles by one machine. C Channel & Box Channel thicknesses vary from .003" thick up to .150" thick. On 1/4 & 1/2 hard aluminum, Aluminum C Channel & Aluminum Box Channel thicknesses can reach up to .250" thick. Many different decorative pre-coated metals are generally not recommended when more than .030" thickness is required unless larger than normal corner radii can be used. Some coatings can be used, however, up to .125" thick such as a pre-finished Hot Dip Galvanized coating. Box Channel & C-Channel Lengths may be from 3" thru 40 feet long with close tolerances. Many different lengths can be put on one purchase order. Here are some sizes for your reference:


    C Channels & Box Channels have many popular uses.

    C Channels, Box Channels, Open Seam: Square and Rectangular Tubing are used in almost all industries for any possible application such as in this brief summary of other known terms:By this they can use two C channel instead of on metal tube.


    Automatic multi-size C-Channels & Box Channels rolling forming machine

    Main roll forming machine
    Note: We use split rollers to realize one machine to produce C profile products with different bottom widths.
    Voltage380V ,50Hz, 3Phase (as customer request)
    Frame typeMemorial arch frame of thickness 30mm
    Drive modeHeavy duty gearbox as transmission
    Material of rollersGCr12mov
    Material of shafts45# steel with tempering
    Diameter of shaftsΦ70mm
    Number of rollers15 rollers With more rib roller one more station and 4 sets rib adjustable rollers
    Main power7.5 kw and with one more motors 11kw
    Raw MaterialsGalvanized steel plate
    Material thickness0.5-1.5 mm
    Forming speed50 m per minute without punching hole

    Machine working flow for your reference:


    More details of the Automatic multi-size C-Channels & Box Channels rolling forming machine:

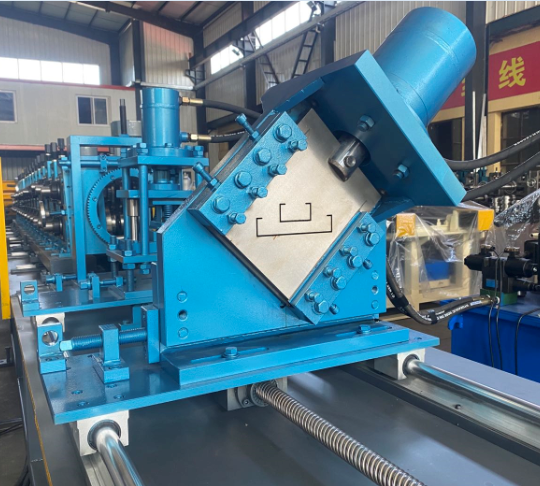

    Shearing Mechanism Automatic multi-size C-Channels & Box Channels rolling forming machine:


    Advantages of Automatic multi-size C-Channels & Box Channels rolling forming machine:

    1. Pressure roller material: Stainless steel and then it will not damage the coil and never go rusting.

    2. Split rollers to realize one machine to produce C drywall products with different bottom widths.

    3. Fully automatic PLC control.

    4. It supports both manual adjustment and PLC adjusting for different sizes.

    • High speed to 50 meter per minute.
    • It supports online punching
    • Logo adding and others.

    Automatic multi-size C-Channels & Box Channels rolling forming machine working videos for your reference:
