    Metal Wall Cladding Sheet Panel Making Machine

    Ask Lasest Price
    Brand Name : ZTRFM
    Model Number : ZTAC
    Certification : SGS, CE
    Price : under discuss
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Metal Wall Cladding Sheet Panel Making Machine

    Metal Wall Cladding Sheet Panel Making Machine

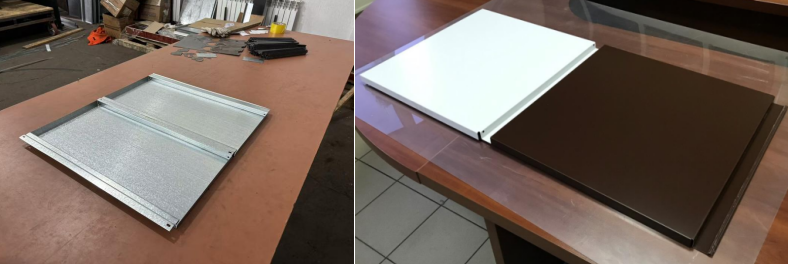

    Metal Wall Cladding Sheet Panel Making Machine is designed to make the wall cladding panel sheets in batch fully automatically. In the market, there are lots wall cladding sheets, here I will show you one with box profile type, which can make the something like close type Exterior metal sheet wall cladding. Here are some drawing profile and finished product for your reference:

    Compared with other wall cladding sheet, this one has the following advantages:

    1. Side with rotary punching holes for easy to do installation.

    2. Width adjustable.

    3. With end bending something like closed type.

    4. Length adjustable.

    5. 3D effect more stronger.

    6. Hidden type of nail installation

    Metal Wall Cladding Sheet Panel Making Machine designs:

    Metal Wall Cladding Sheet Panel Making Machine Working Flow:

    The metal wall cladding panel machine works like this: from the decoiler and then go the leveling and f liming part(f liming is optional, you can choose to add or not) and then to corner cutting and punching of the corner, and then to the main rolling forming part, it is width adjustable. Last step is the bending and shearing and then come to the receiving table.

    1. For the decoiler, you can choose the manual one or the hydraulic one.

    2. For the corner cutting part, the width also adjustable. So for different profiles, you can adjust it according to different width:

    As the wall cladding panel sheets machine:

    Rolling shaftShaft material: 45# steel with quenched treatment, precision machined
    Shaft diameter: 65 mm
    RollerRoller material: GCR15 steel, finely processed, HRC58-62℃ surface chrome plating
    Machine structureArch frame thickness 35 mm
    Rolling station16 stations
    Forming speed10-20 m/min
    Machine body350H beam steel
    BearingChinese famous brand Harbin
    Work power5.5 kw servo motor
    TransmissionBy chains
    Automatic changing sizeBy servo motor; PLC control

    As to the shearing and bending part, Cutter material Cr12Mov, Hardening HRC 58-62℃

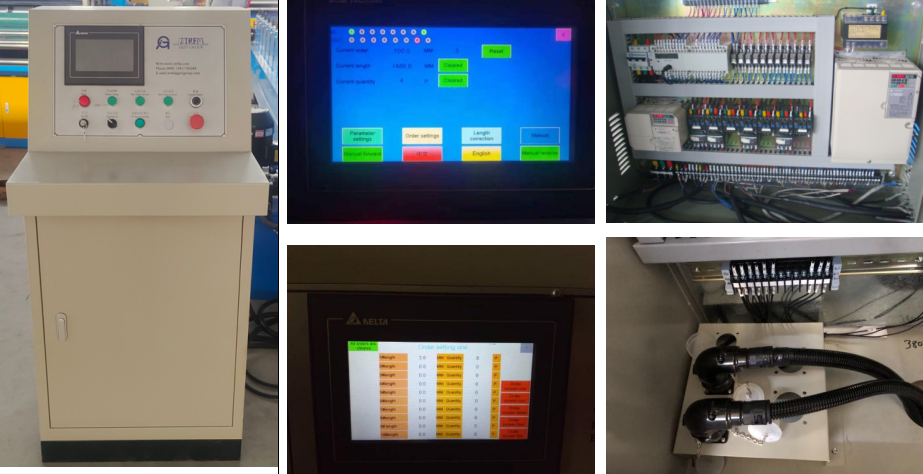

    As to the PLC control system

    Control system: Frequency brand Siemens

    PLC brand: Siemens

    Screen type:Touch screen & buttons

    Screen language: English/Chinese/others

    Encoder: Siemens

    Low pressure electrical part brand:Schneider

    Function: Cutting length and quantity control, speed adjustment control

    Adopted PLC, transducer, touch panel from Delta to ensure high speed with more stability, high precision and long lifetime. Other electric element is Schneider. Equipped with movable switch, air break, radiator, transformer & electric leakage protector, that element can make sure easy operation convenience and safety.
