Super market shelving roll forming machine.

Supermarket shelving roll forming line is designed to make the shelf panel profiles in batch automatically. It is variable width roll forming line is able to produce shelves from 300-600 mm with flexible length and servo controlled flexible hydraulic punching system, equipped many new features that allows to run this mill with ease. The working flow of the shelf panel rolling machine is from decoiler, leveling, punching for side holes, main rolling forming machine, up and down bending for edge and then to the receiving table.

Take the following drawing profile for example:

Supermarket shelf panel Sample:

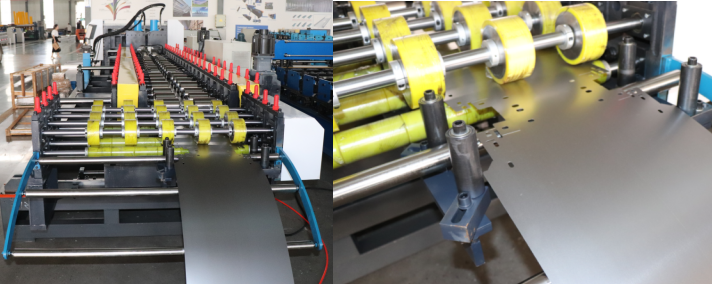

Supermarket shelving rolling forming machine:

1, Main technical parameters of Super market shelving roll forming machine

1. Rolling product specifications: width 285mm~685mm, thickness 0.8mm

2. Production speed: 6-8 m/min

3. Punching method: servo feeding after leveling, hydraulic automatic punching and punching of both sides of the gap.

4. Hydraulic drive, flat punching gap

5. Leveling motor: 4KW

6. Servo feeding motor 5.5KW

7. Hydraulic station power: 15KW with accumulator (large flow pump)

8. Number of forming groups: 30 forming main rollers

9. Installation form: Adopting integral wire cut wall panel chain drive

10. Roller conveyor form: Adopting a split type roller conveyor on both sides, with one side automatically adjustable, and an adjustable motor of 1.5KW

11. Roller material: 45 # steel, surface treated with hard chromium plating

12. Spindle material: 45 # high-quality steel quenched and tempered

Super market shelving roll forming machine features and advantages:

14. Cutting and flipping method: Hydraulic drive, cutting and flipping simultaneously after forming

15. Cutting blade, die material: Cr12 quenching treatment

16. Electric control system: The entire machine adopts industrial computer PLC frequency conversion control

The monotonic shelving machine is a single roll forming unit that can produce various specifications of finished products with rolling rolls. The machine mainly consists of a 5T unwinding machine, leveling machine, servo feeding machine, hydraulic punching of continuous holes on both sides of the first workstation (with a pitch of 300), hydraulic punching of the tail gap of the second workstation and four long slot holes on the head, monotonous forming host, forming cutting and flipping device, hydraulic station, computer control cabinet, discharge table, and other parts.

The monotonic machine adopts a split form of two roller tracks, with both sides moving simultaneously, allowing for quick and stepless width and size changes.

Shelf Panel Machine Working Flow:

Unwinding - leveling - servo feeding - hydraulic punching of the continuous holes on both sides of the first workstation (with a pitch of 300) - hydraulic punching of the head and tail notches and four long groove holes on the head of the second workstation - guidance - roller pressing (formed by 30 rollers on the main machine) - cutting and flipping of both ends after forming - finished product
