    PPGI / GI Excellent Standard 7.2 Panel Steel Sheet Roll Forming Machine High Quality

    Ask Lasest Price
    Brand Name : ZTRFM
    Model Number : ZTAC
    Certification : CE,SGS
    Price : under discuss
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets per month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    PPGI / GI Excellent Standard 7.2 Panel Steel Sheet Roll Forming Machine High Quality

    High quality (7.2 Panel) Metal Roofing Panel Machine

    We are engaged in the manufacturing, supplying, and exporting of High quality (7.2 Panel) Metal Roofing Panel Machine. Our offered range of machines are highly appreciated by the clients all around the world for its unique property like smooth and flexible performance and robust construction. Further, this High quality (7.2 Panel) Metal Roofing Panel Machine is widely used for manufacturing steel sheets that are used for the roofs of fabricated buildings.

    We are highly renowned manufacturer, exporter and supplier of a wide range of High quality (7.2 Panel) Metal Roofing Panel Machine. It is manufactured by our professionals using quality approved components that is procured from the reliable vendor of the market, in compliance with international quality standards to ensure flawlessness at users’ end. This machine is quality tested and is offered in various technical specifications and can be availed in bulk quantities. Clients can avail offered machine from us at most economical price.

    We are engaged in the manufacturing, supplying, and exporting of High quality (7.2 Panel) Metal Roofing Panel Machine. Our offered range of machines are highly appreciated by the clients all around the world for its unique property like smooth and flexible performance and robust construction. Further, this High quality (7.2 Panel) Metal Roofing Panel Machine is widely used for manufacturing steel sheets that are used for the roofs of fabricated buildings.

    Here is one drawing profile and finished product:

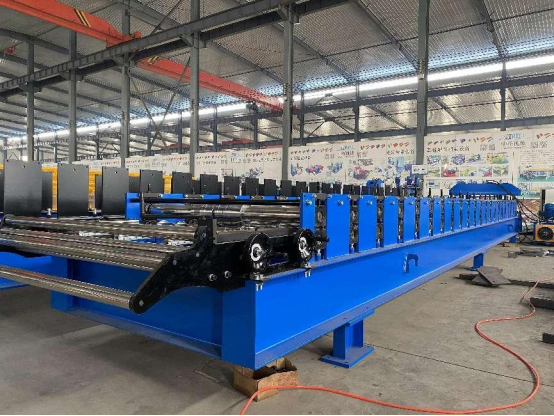

    High quality (7.2 Panel) Metal Roofing Panel Machine

    Salient features of High quality (7.2 Panel) Metal Roofing Panel Machine:

    • With PLC touch screen control for accurate tuning of machine operations

    • Equipped with hydraulic Decoiler for easy loading & unloading of coil

    • MS forged, grinded & hard chromed rollers ensure precise formation of products without leaving any marks

    • Uniform distribution of material around its axle provides longer life to structures long life

    • Works on printed or galvanized materials, which reduce cost & saves time

    • Can perform multiple operations online like punching, embossing, forming, cutting which increases productivity

    • Cold roll forming provides cut to length sizes to avoid any wastage of material

    • Gives the engineers & planner enough flexibility to create unique structures

    • Efficient control panel to set important operative parameters easily

    • Aesthetically and ergonomically build machine for best performance

    • Produced in an advanced state of the art manufacturing facility

    • World class bought out items for optimum operations

    • Designed to work 24 hours, round the clock

    • Operator friendly machine, hence easy to operate and maintain

    • Low maintenance and operating cost

    • Sturdy design to ensure long life and trouble-free operation

    Technical of the whole line:


    5ton manual decoiler

    1.Capacity:5ton

    2.Coil diameter:450-550mm adjustable

    3.Coil width:Max1350mm

    4.Un-powered, manually control steel coil inner bore shrinkage and stop


    Manual pre-cutter

    Pre-cutter is suitable for frequent replacement of steel coil equipment,cutting steel coil in advance for easy replacement and reducing the wast of steel coil.

    Main forming machine

    1.Main frame:400mm H beam structure, with 20mm thickness welded steel middle support plate.

    2.Forming station:24 stations

    3.Roller material:High grade 45# steel,chromed treatment,which makes the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life

    4.Shaft material:High grade 45#,Tempering treatment, prevent deformed and improve the hardness

    5.Shaft diameter:80mm,solid 6.Motor power:7.5kw 7.Speed:0-20m/min

    8.Voltage:380V,50HZ,3P(Or as request)

    9.Transmission:By 1inch double chain,Chinese famous brand HRB


    Hydraulic cutting deivce

    1.Blade material:Gcr12 quenched treatment 2.Length tolerance:±1mm

    3.Hydraulic power:5.5kw

    4.With air cooling system in the hydraulic station

    5.Cutting feature:Steady and safe working condition and low sounds.

    6.Oil tube and wires connection:All the tubes and wires will be marked by the numbers or letters,so that it will be easy to connect for the new.


    Control system

    1.Frequency converter:Delta

    2.Screen:touch screen

    3.PLC brand:Delta

    4.Language:Chinese and English(Or as customers’ request)

    5.Encoder:Omron

    6.Feature:The control system support multi orders input,it can match different production needs

    7.Functions:Cutting length control,cutting quantity control,and speed control

    Run out table

    1.Length:3m

    2.Quantity:2sets

    Spare parts
    1. Tool box:1 set
    2. 4pcs fuse, 2pcs travel switch,Chains 2pcs
