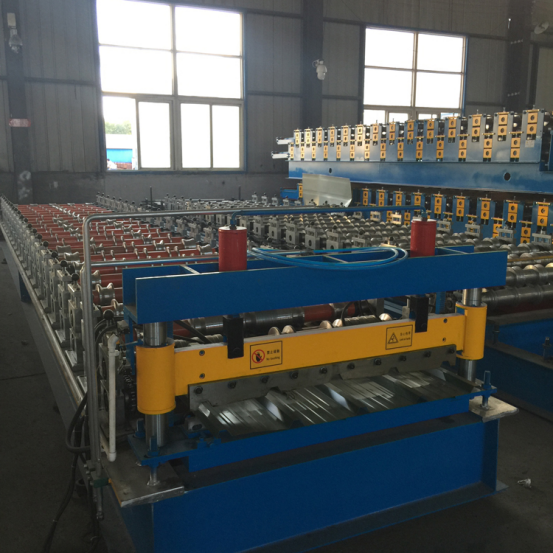

High quality PBR Panel Metal Roofing Machine
PBR -Panel Metal Roof is built with 36-inch-wide interconnected
metal panels.These metal roof types feature overlapping seams which
limit water infiltration.
PBR - Panel metal roofs are the long-lasting and beautiful stunning
metal roofing option.They are easy to install and this course cuts
down on labor,time,and disposal costs.These R panel roofs are
available in many different colors.R-Panel/PBR - Panels are very
popular for both local and commercial roofing system.
PBR -Panel Metal Roof is built with 36-inch-wide interconnected
metal panels.These metal roof types feature overlapping seams which
limit water infiltration,but the exposed fasteners can be a point
of weakness.ZTRFM is one of the leading PBR panel metal machine
manufacturers in the PBR -panel metal roof,and specialized in the
design,manufacture the roll forming machines,and PRB panel roll
forming machine.
Here is one drawing profile and finished product:
High quality PBR Panel Metal Roofing Machine
Production technology process:
Feeding → Leveling → Forming → hydraulic Cutting after forming →
Output
The price of ZTRFM’s roll forming machines is a little higher than
other suppliers'. Let me explain about our machines difference:
ZTRFM’s machine design: it is unit one, which means the control box
and the hydraulic station are all put under the machine frame, when
you get the machine, no need to assemble and connect the complicate
cable of the machine, you only need to connect one main cable, then
the machine is working. it saves more time and space.
Our display screen is touch screen, not text touch screen.
ZTRFM roll forming system: We will make the hand wheels at the
feeding device to adjust feeding width, and we also make the wheels
with the numbers then you know how to adjust right and left sides,
also we made the rulers on the bedding, you can adjust the profile
height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also
with protecting cap also add laminating film device and felt to
make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of
emergency, emergency alarm, stop operation.
Technical of the whole line:
5ton manual decoiler | 1.Capacity:5ton 2.Coil diameter:450-550mm adjustable 3.Coil width:Max1350mm 4.Un-powered, manually control steel coil inner bore shrinkage and
stop |
Manual pre-cutter | Pre-cutter is suitable for frequent replacement of steel coil
equipment,cutting steel coil in advance for easy replacement and
reducing the wast of steel coil. |
Main forming machine | 1.Main frame:400mm H beam structure, with 20mm thickness welded
steel middle support plate. 2.Forming station:24 stations 3.Roller material:High grade 45# steel,chromed treatment,which
makes the rollers surface more smoothly, improve the hardness and
prevent abrasion, anti corrosion increase of service life 4.Shaft material:High grade 45#,Tempering treatment, prevent
deformed and improve the hardness 5.Shaft diameter:80mm,solid 6.Motor power:7.5kw 7.Speed:0-20m/min 8.Voltage:380V,50HZ,3P(Or as request) 9.Transmission:By 1inch double chain,Chinese famous brand HRB |
Hydraulic cutting deivce | 1.Blade material:Gcr12 quenched treatment 2.Length tolerance:±1mm 3.Hydraulic power:5.5kw 4.With air cooling system in the hydraulic station 5.Cutting feature:Steady and safe working condition and low sounds. 6.Oil tube and wires connection:All the tubes and wires will be
marked by the numbers or letters,so that it will be easy to connect
for the new. |
Control system | 1.Frequency converter:Delta 2.Screen:touch screen 3.PLC brand:Delta 4.Language:Chinese and English(Or as customers’ request) 5.Encoder:Omron 6.Feature:The control system support multi orders input,it can
match different production needs 7.Functions:Cutting length control,cutting quantity control,and
speed control |
| Run out table | 1.Length:3m 2.Quantity:2sets |
| Spare parts | - Tool box:1 set
- 4pcs fuse, 2pcs travel switch,Chains 2pcs
|
