High Speed Trapezoidal Roof Tile Roofing Machine

Introducing the High Speed Trapezoidal Roof Tile Roofing Machine. This machine is specifically designed for rapid production of trapezoidal roof tiles, aimed at increasing production efficiency while ensuring product quality. By incorporating advanced technology and premium materials, this machine achieves high-speed production while maintaining stability throughout the manufacturing process. Key features include fast and efficient operation, reliable performance, and precise material processing, making it an ideal choice for manufacturing trapezoidal roof tiles.

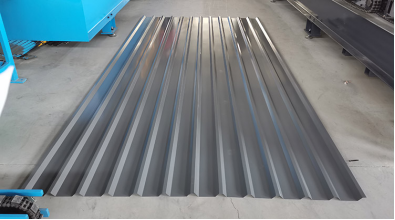

Profile drawing for reference:

High Speed Trapezoidal Roof Tile Roofing Machine

High Speed Trapezoidal Roofing Machine technical parameters:
Formed Material: PPGI,GI,AI
Thickness: 0.3-1.0mm
Width: 1000mm/1250mm(customized)
Roller station: 26 rows(As your requirement)
Diameter of shaft: 80mm solid shaft
Material of rollers: 45# steel, hard chrome plated on the surface
Machine body frame: 350 H steel
Motor Power: 5.5KW
Voltage: 380V 50Hz 3Phase(As your requirement)
Control system: PLC
Forming Speed: 0 – 60m/min
Cutting type: Hydraulic cutting
Hydraulic power: 7.5kw
Cutting blade material: cr12mov material, no scratches, no deformation
Cutting tolerance: +/-1mm

The advantage of High Speed Trapezoidal roll forming machine:
We have the capability to manufacture different types of roof sheet machines based on client specifications. This particular machine excels in high-speed operation, offers enhanced stability due to gearbox transmission, and boasts a robust cast iron structure.

Product display:

1.Hydraulic decoiler
Empowered with automated functionality, enabling autonomous operation.
Automatically adapts the decoiler to accommodate coils based on their diameter.
Equipped with a pneumatic braking system for enhanced control and safety.
Includes a press arm mechanism to secure coils and prevent loosening.

2.Roll forming device
Roller station: 26 rows(As your requirement)
Diameter of shaft: 80mm solid shaft
Material of rollers: 45# steel, hard chrome plated on the surface
Machine body frame: 400H steel
Drive chain: 1.2inch(As your requirement)

3.Hydraulic cutting device
We utilize a pillar cutting system structure, ensuring stable cutting operations. The hydraulic oil pump station supplies power to the cutting system, facilitating efficient and reliable cutting processes.

4.PLC control System
PLC brand: Delta(Taiwan)
Frequency converter brand: Delta(Taiwan)
Encoder: Omron
Function: Automatic control the length,quantity and batch
