High Speed Rectangular Step Glaze Roofing Tile Roofing Sheet Machine

A high-speed metal glaze roofing roll forming machine is a specialized equipment used for manufacturing glazed metal roofing tiles.It efficiently processes metal coils through a series of rollers to form the desired tile profile.The glazing process adds both aesthetic appeal and protective properties to the tiles.With features like high-speed operation,precision forming,and automated controls,this machine ensures consistent quality and productivity in producing glazed metal roofing tiles.

Here is one drawing profile and finished product:

High Speed Rectangular Step Glaze Roofing Tile Roofing Sheet Machine

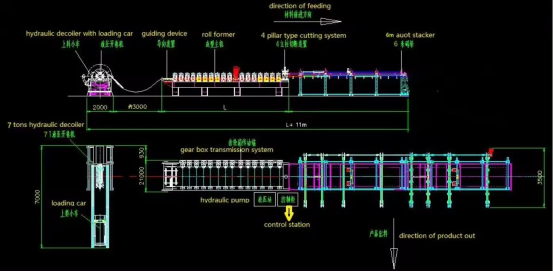

The working flow:

The advantage of High Speed Rectangular Step Glaze Roofing Tile Roofing Sheet Machine:
1. High speed: Gearbox transmission enhances speed up to 10m/min, reducing pressing and cutting durations.
2. Adopt mold cutting, the product exhibits lace-type edges, resulting in aesthetically pleasing tiles.
3. Hydraulic decoiler and auto stacker minimizes labor requirements during operation, improving efficiency.

Hydraulic decoiler
1. Capacity: 5T
2. Coil diameter: 450-550mm
3. Coil outer diameter: 1500mm
4. Coil width: 1250mm(as customers’ request)
5. Hydraulic power: 5.5kw

Feeding Part
1. Protective Rubber Rollers: Safeguard the surface of raw materials from damage.
2. Convenient Handwheel Adjustment: Easily adapt for feeding various thicknesses of raw materials.
3. Adjustable Platform Width: Handwheel-operated platform width adjustment, featuring internal bearings to shield the steel sheet edges.

Roll Forming System
1.Material Of Rollers: 45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.
2. Material of shafts: 45# Steel Tampering Treatment, Prevent Deformed And Improve The Hardness
3. Forming stations: 16 stations
4. Diameter of shafts: Φ80mm
5. Machine Structure: Vertical Arch Frame Structure

Transmission
1. Gear Box Transmission (Bevel Gear Inside)
2. Material Of Gear: 20 Crmnti
3. Material Of Gear Box: Iron Casting
4. The connection between gear boxes are chains
5. Gear box will connect with the rolling station one for one
6. Advantage: can improve the speed directly after cutting

Hydraulic Cutting Device
1. Blade material: Cr12, with quenched treatment
2. Hydraulic power: 7.5kw
3. Cutting tolerance: ±1mm
4. With fan cooling on the oil pump

PLC control system
1. Control system: PLC
2. PLC brand: Delta from Taiwan
3. Frequency converter brand: Delta from Taiwan
4. Encoder: Omron
5. Function: Automatic control the length and quantity
