Cellular Decking Metal Roof Decking Making Machine
Cellular Decking Metal Roof Decking Making Machine is designed for
making the metal decking sheets in batch and fully aromatically.
What is Cellular Decking Metal Roof Decking Making Machine?
Galvanized floor deck, suitable for steel structure construction,
greatly improving the stiffness of the floor
1.To meet the requirements of rapid construction of the main steel
structure, it can provide a firm working platform in a short time,
and can use multiple floors to lay profiled steel plates and
layer-by-layer pouring concrete slabs for flow construction.
2.In the use stage, the floor deck is used as the tensile
reinforcement of the concrete floor, which also improves the
stiffness of the floor and saves the amount of steel and concrete.
3.The embossing on the surface of the profiled plate makes the
maximum bonding force between the floorboard and the concrete, so
that the two form a whole, with stiffeners, so that the floorboard
system has a high-strength bearing capacity.
Here is one standard B deck for your reference:
Cellular Decking Metal Roof Decking Making Machine
Advantages of Cellular Decking Metal Roof Decking Making Machine:
1.Both the feeding port and the cut-off have added oiling devices
to ensure the smoothness of the machine and avoid the falling of
the zinc layer
2.Split molding mode, more molding volleyball, better molding
effect
3.For high peaks, we will add chains to ensure the stable operation
of the machine
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | | |
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |

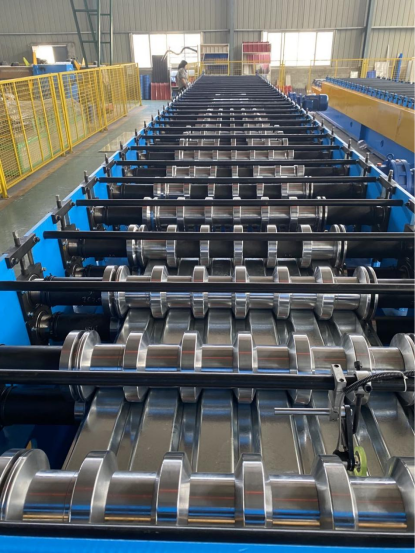

roll forming
| Item | Parameter detail |
| Processing Material | GI and PPGI |
| Material thickness | 0.25-0.8mm |
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument
measurement to make sure the final frame is high-precision |
| Machine siding panel | | plate type | Pillar type(option) | | | | Plate thickness:20mm | Pillar thickness:30mm | | Painting:normal painting | painting:Chroming |
|
| Forming stations | 20-38 stations(according to the profiles) |
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness
0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC
lathing--chroming |
| Machine Shaft | φ80-90mm high garde No.45 steel after treatment, |
| Machine spacers | CNC lathing in high-precision |
| Machine bearings | China Haerbin bearing or SKF international bearing(option) |
| Driving system | 2 inch chain or gear box(option) |
| Machine power | 15kw-22kw(according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min(option) |
| Machine adjust type | After machine installation, we will test it ourselves, compare with
the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type | bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight.
this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual |
Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump:
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
