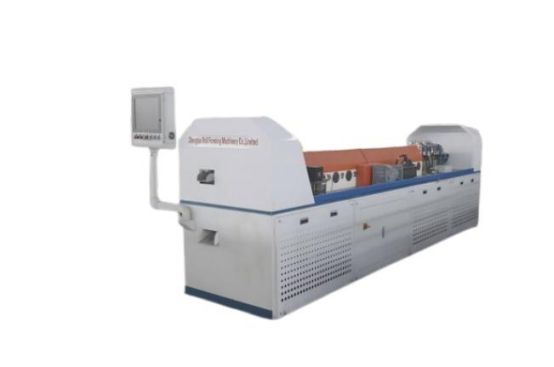

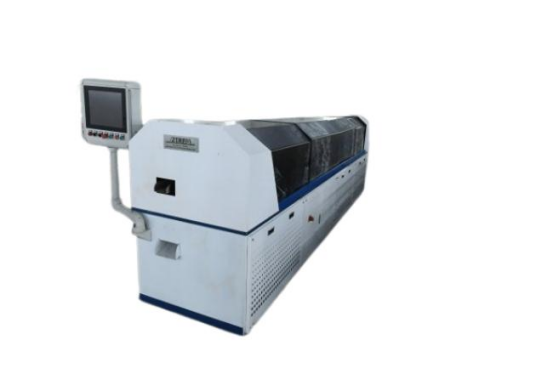

Villa House Structure Making Machine
Villa House Structure Making Machine (roll forming machine) is a
fully automatic production line for house structure channel
profile.
This light gauge steel framing C channel profile roll forming
machine is specially designed for the production of light steel
villa house structure.
Only need to input the technical drawing of the steel villa housing
structure. The machine will automatically calculate the raw
materials consumption, holes punch positions, each section lengths
by the industrial computer installed on the equipment.
Then it will start the production one by one according these data
and jet the code on each section for easy fabrication. It can save
many labors cost and achieve fully automatic production.The machine
includes uncoiler, straightener, multi pre-punch stations, main
roll forming machine, code inkjet machine, shearing machine,
automatic control system.According with the prefabricate request
for the light gauge steel framing structure.
Here is a profile pictures:
Villa House Structure Making Machine
ZTRFM Offer Full Solution For The Light Gauge Steel Framing Housing
Machines As Following
- C75 LGS framing Making machine
- C89 LGS framing making machine
- C140 LGS framing roll forming machine
- Flexible Light Gauge steel framing making machine
- Mobile Light gauge steel framing making machine
By simply input the requested width on touch screen, the servo
motors can drive the forming rollers to the position produce
different widths of cable trays on the same machine.
Machine Features
Fast speed Design fast :Equipped with international advanced QSS software,
equipment can be initiated in 30 minutes. Fast speed production: equipment has a production speed of 300-700
m/hour and 2800m/hour maximum. |
High accuracy
1. Size: The light gauge steel framing C channels produced by
KINGREAL equipment can reach +_ 0.5mm for the accuracy. 2. Forming standard: KINGREAL equipment can guarantee the precision
of products for the flexible machine. 3. Maintenance and repair: independent molding, punching die
statistics interface equipped, strong technical support for
after-sales provided. |
Flexible solution
1. With its rich experiences on cold roll forming equipment
manufacturing, KINGREAL uses the modular design concept to ensure
the standardization of equipment parts to achieve fast production
delivery.
2. The parts in the production process are completed on the
automatic machining center. Reduce human dependence and ensure the
sustainability of equipment quality.
|
High quality roll forming
1. CNC control system is the same as the design of the
international mainstream equipment, using independent independent
intellectual property control software to achieve data linkage and
remote network diagnosis and maintenance. 2. Choose the highest-end and most reliable configuration as much
as possible to ensure the quality of the equipment is excellent,
reliable and safe. The key parts are selected from well-known
brands at home and abroad to fulfill our brand route. 3. Due to continuous innovation and continuous improvement of
product construction concept, we provide high-precision and sturdy
equipment for our customer |
Technical Specification Of Villa House Structure Making Machine:
| Raw materials | 0.7-1.2mm, G300-G500 zin plated, aluminumzinc plated |
| Raw material width | ≤1050mm |
| Raw materials weight | ≤8T |
| Raw material ID | 460～510mm |
| Raw material OD | ≤1200mm |
| Material thickness | 0.7-1.2mm |
| Products width | 75mm/ 89mm/140mm for your choice |
| Punch speed | 2.5-5m/min |
| Production line | Fully automatic |
| Maximum forming speed | 12 m / min |
| Roll Forming stands | 22 Rollers station |
| Forming rollers materials | GCr15 quenching treatment |
| Driving method | Gearbox driving |
| Electrical control system | PLC control |
| Power input | 3 Phases 380V 50HZ or according with your request |
| Machine Power | ~ 16.5 KW |
| Dimension | 32*2.3*1.8M (L*W*H) |
