    Snap Lock Standing Seam Roofing Panel Rolling Forming Machine

    Ask Lasest Price
    Brand Name : ZTRFM
    Model Number : ZTAC
    Certification : SGS, CE
    Price : understand discuss
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Snap Lock Standing Seam Roofing Panel Rolling Forming Machine

    Snap Lock Standing Seam Roofing Panel Rolling Forming Machine

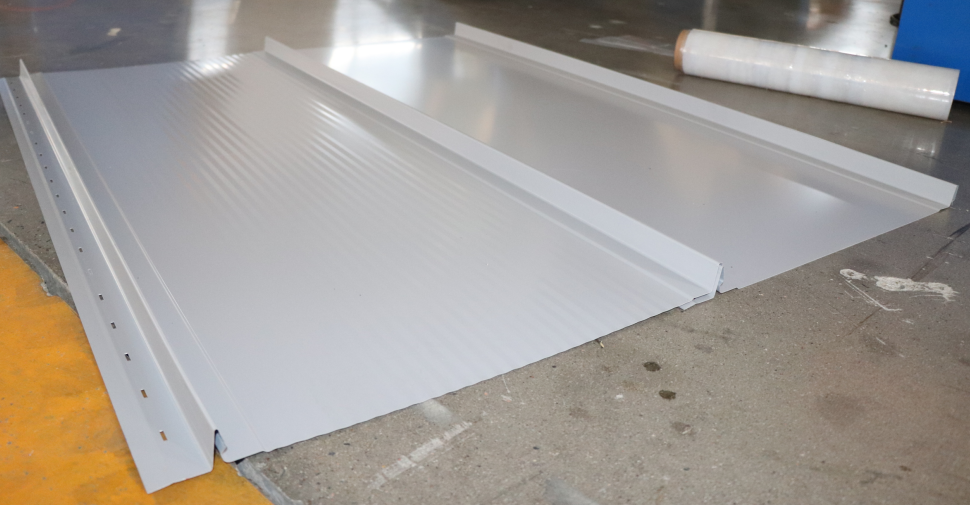

    There are many different profile options for the roofing panels— including mechanical seam, snap-lock, and nail strip/fastener flange — are distinctly different in terms of performance, engineering and testing, slope requirements, attachment method, price, and so on. Here we will introduce one type width adjustable standing seam profiles, snap lock type here, also the metal embossing type also adjustable. Here are some drawing profiles for your reference:

    There are two types width adjustable: when you use narrow strip or wide coil, you can choose the width range according to your requirements: As to the bottom ribs embossing pattern, we can design according to your requirements.

    Here are some parameters for your reference:

    Feeding device

    One set guiding roller
    Steel plate welded platform to carry the sheet and feed into roll forming system
    Feeding width is adjustable with the handle wheels

    Rolling shaft

    Roller

    Shaft material:45# STEEL
    Shaft diameter: 75 mm
    Tempering treatment to prevent deformed and improve hardness
    45# steel
    Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
    Rolling station21 roller station
    Work speed20 m/min
    Machine structureSteel plate welded structure
    Machine basic frame500# H steel welded
    Work powerMain motor: 5.5 kw
    hydraulic station:3KW
    Linear motor:1.5KW
    Rolling spacerAnti rusty treatment
    Pull rodAnti rusty treatment
    TransmissionBy Chains with cover
    Noted: please fill the lube in case the chains getting dry

    Features of Snap Lock Standing Seam Roofing Panel Rolling Forming Machine

    1. Width adjustable by PLC automatically.

    2. With embossing rollers for different types.

    3. With linear motor more accurately.

    4. Strong rollers for long time to use.

    5.Smap lock could be tightly.

    6. With the side locking, you can choose to let it work or not with.

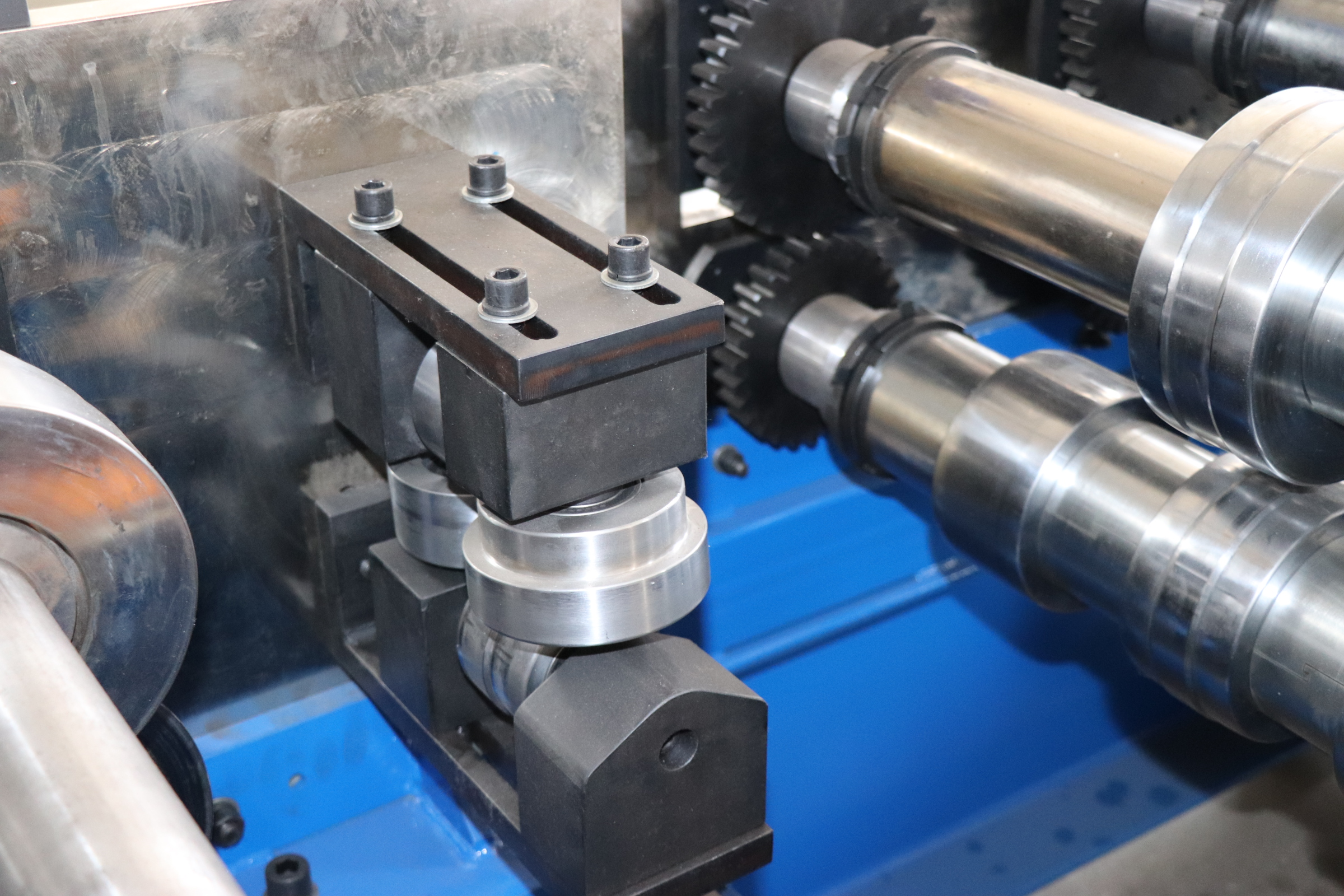

    7. With side rollers to make sure the shape more beautiful

    We also have fixed type like width is fixed and then machine cost will be much more lower than this type. If you need to know more information, please contact us at any time.
