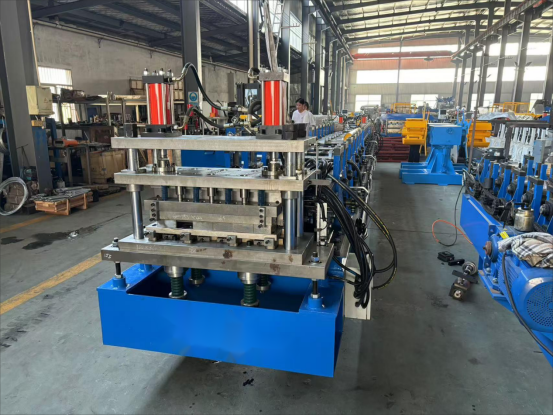

Soffit Panel Roll Forming Machine

Soffit machine creates fascia and soffit. With or without ventilation strip for solid soffit. Formed in seamless lengths. Adjustable perforation stage with 6 rows of venting. Gives a unique look not like the typical look of V-groove panels.

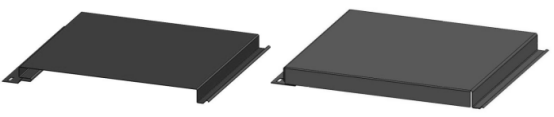

Here is one drawing profile and finished product:

Profile for reference:

Soffit Panel Roll Forming Machine

Specifications

ZTRFM Aluminum Roof Sheet Soffit Making With Rotary Punching Soffit Panel Roll Forming Machine

Design Idea:
Stable Transmission: arch way structure, process ventilation holes through embossing rollersFull Automatic
Easy Operation:Whole producing line just need one person for operation.
Application of the finished product:Usually used in the roof or wall
Product Paramenters
The price we supply you full producing line
decoiler device
Loading capacity :3 Tons
Type:Manual with handwheel
(buy machine give you manual type as free)
Feeding device
With handwheels for easy adjustable
Roll Forming Device PLC control system
Shaft material: 45# steel with quenched treatment
Transmission :By chains
Roller material: Cr15 Mov with quenched treatment
Machine Frame:steel plate welded with grinding
1.Touch screen
2.Famous brand:Siemens,Schneider
3.Speed and order control automatically

Hydraulic cutting device
Drive method:
By pillar type Cylinder

we can manufacture contains: roofing sheet machine, CZ purlin machine, light steel gauge machine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machines, rack system machines, floor decking machine, stone coated steel roofing sheet machine as so on. The company has passed ISO9001 quality control system certification, European CE safety certification, North American CAS electric certification, and has instill the concept “time is money, quality is life, customer is the king” into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowadays our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients.
