M Purlin Roll Forming Machine

The M Purlin Roll Forming Machine is a cutting-edge industrial equipment designed for efficient production of high-quality M purlins. With precision engineering and advanced technology, this machine effortlessly shapes metal sheets into precise and uniform M purlin profiles. Its versatility allows for various sizes and designs of purlins, meeting diverse construction needs. The M Purlin Roll Forming Machine ensures consistent and accurate results, optimizing production efficiency and reducing labor costs. It is an essential tool for manufacturers aiming to deliver reliable and durable M purlins for commercial, industrial, and residential buildings, providing superior structural support and exceptional performance.

Purlin roll forming machine is the most popular and has an extensive use in the construction work. Sigma Purlins M purlin profile, we can design according to the size range, thickness range and give the different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors): In the market, the most popular is C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes
C/U/Z/M section-automatically change from C to Z, change time: few seconds. But this design, the cost will be a little higher.

Here I will share a more economic design which only can produce M purlin, by this way we can save the cost:

Here is just one size for your reference, by manual adjustment, the production line can produce more sizes meanwhile the cutting blades also needed to be changed also.

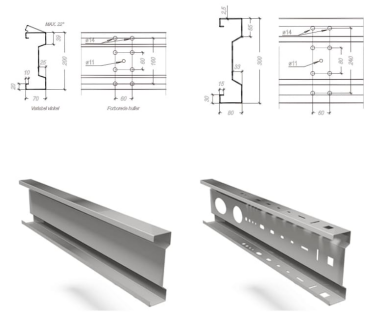

Sigma Purlins M purlin roll forming machine manual adjustment type for your reference:

Sigma Purlins M purlin roll forming machine working flow:

Uncoiling—guiding—feeding&flatting—forming—punching&cutting—product receiving

Where to use the M purlin:

Roof purlins:

Use sleeves to shorter purlin or assemble 2-span purlin staggered

Keep a space of approx. 15 mm between the truss and the purlin

Eaves beams are supplied with an angled top flange, so only 1 profile is needed where roof and wall meet

Options of CUM purlin fully automatic type, we will share in next article. For more information, please contact us at any time.
