Metal Hat sale stud and track c channel drywall main furring wall angle Machine

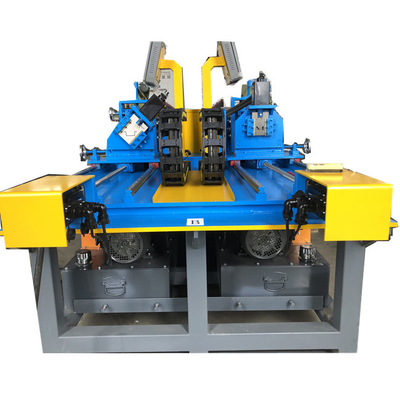

Combo hat profile and wall angle profile rolling machine is a kind of combination of two profiles by one machine. This type rolling forming machine could be used to make two profiles by one machine at the same time.

The combination of two sets of machines is just for making the machine smaller and taking small space. When letting two machines working, it is much easier to watch and operate. The two different drawing profiles could be made at the same time. The combination is random, they are could be wall angel roll forming machine, C stud roll forming machine, U track machine and others.

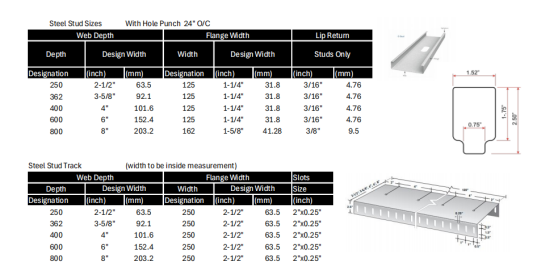

Here are some profiles for your reference:

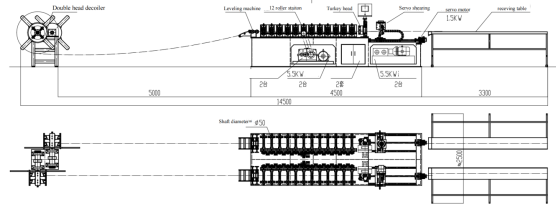

Working flow

Metal Hat sale stud and track c channel drywall main furring wall angle Machine

Combo profile rolling machine advantages:

1. Two profiles could be made by one machine

2. Two lines could work at the same time.

3. Working speed can reach 45 meter per minute.

4. It takes less space and less worker. One worker can watch two production line.

Punching holes

The hydraulic station to punch holes, one station.

The molds are changeable. We will give related holes molds.

We put the hydraulic station with the machine, all the hydraulic pipe connected well.

We add the oiling system with the machine. As when you use the GI coil, and working high speed, the zine coating layer will be on the surface of rollers. By the oil adding, there will no such problem happened.

As to the design, not all profiles could be designed like this, some wide coil can not be designed like this. But the narrow strip coil could be designed like this.

With the protection cover, when machine working, it is more safe.

When you need to design such machine, please show me your drawing profile and then we can try to design machine for you.
